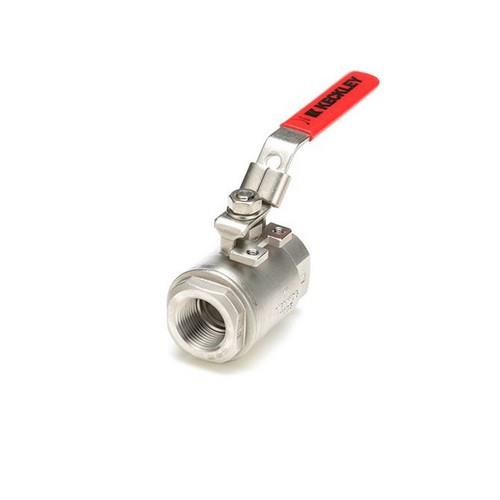

BVS2 Seal Welded Ball Valve | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
BVS2MFFSSRGSL-025 Class / Pressure: 2160 PSI Connection: MNPT x FNPT Body Material: Cast Stainless Steel Size: 1/4"
BVS2MFFSSRGSL-038 Class / Pressure: 2160 PSI Connection: MNPT x FNPT Body Material: Cast Stainless Steel Size: 3/8"
BVS2MFFSSRGSL-050 Class / Pressure: 2160 PSI Connection: MNPT x FNPT Body Material: Cast Stainless Steel Size: 1/2"
BVS2MFFSSRGSL-075 Class / Pressure: 2160 PSI Connection: MNPT x FNPT Body Material: Cast Stainless Steel Size: 3/4"
BVS2MFFSSRGSL-100 Class / Pressure: 2160 PSI Connection: MNPT x FNPT Body Material: Cast Stainless Steel Size: 1"
BVS2THFCSRGSL-025 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 1/4"
BVS2THFCSRGSL-038 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 3/8"
BVS2THFCSRGSL-050 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 1/2"
BVS2THFCSRGSL-075 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 3/4"
BVS2THFCSRGSL-100 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 1"
BVS2THFCSRGSL-125 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 1-1/4"
BVS2THFCSRGSL-150 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 1-1/2"
BVS2THFCSRGSL-200 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 2"
BVS2THFCSRGSL-250 Class / Pressure: 1500 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 2-1/2"
BVS2THFCSRGSL-300 Class / Pressure: 1500 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 3"
BVS2THFCSRGSL-400 Class / Pressure: 1000 PSI Connection: NPT Body Material: Cast Carbon Steel Size: 4"
BVS2THFSSRGSL-025 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 1/4"
BVS2THFSSRGSL-038 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 3/8"
BVS2THFSSRGSL-050 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 1/2"
BVS2THFSSRGSL-075 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 3/4"
BVS2THFSSRGSL-100 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 1"
BVS2THFSSRGSL-125 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 1-1/4"
BVS2THFSSRGSL-150 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 1-1/2"
BVS2THFSSRGSL-200 Class / Pressure: 2160 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 2"
BVS2THFSSRGSL-250 Class / Pressure: 1500 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 2-1/2"
BVS2THFSSRGSL-300 Class / Pressure: 1500 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 3"
BVS2THFSSRGSL-400 Class / Pressure: 1000 PSI Connection: NPT Body Material: Cast Stainless Steel Size: 4"

Quick Overview

Keckley Style BVS2 seal welded high pressure ball valves are constructed from investment cast ASTM grade materials that are NACE MR0175 compliant. They are machined to exacting specifications. Full seal welding of body to tailpiece eliminates the possibility of the tailpiece unthreading, leaking or “blowing out” in service. All valves are shell and seat tested in accordance with API 598.
FEATURES
Seal Welded Construction
API 607 6th Edition Fire-Safe
Full Port - All Sizes
All Models are NACE MR0175 Compliant
Elongated Packing Gland for Ease of Access When Automated
Standard ISO Actuator Mounting Pads on All Sizes
Standard Locking Stainless Steel Handles
Electrically Grounded Ball and Stem
Optional PEEK Seats for High Temp Services
Optional Oval Handles

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Keckley
