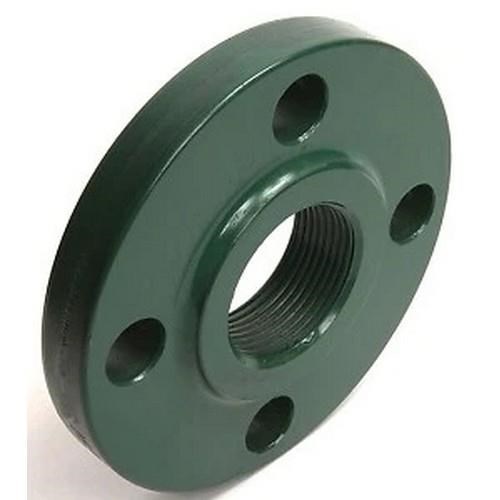

Class 150 THREADED RF

Weldbend

SKU / Product Info	Quantity
105140002000 Nominal Size: 1/2 inch Outside Diameter: 3.5 inches Bolt Circle Diameter: 2.38 inches Thickness: 0.38 inch Number of Bolt Holes: 4 Hub Diameter: 1.19 inches Length Through Hub: 0.56 inc
105140003000 Nominal Size: 3/4 inch Outside Diameter: 3.88 inches Bolt Circle Diameter: 2.75 inches Thickness: 0.44 inch Number of Bolt Holes: 4 Hub Diameter: 1.5 inches Length Through Hub: 0.56 inc
105140010000 Nominal Size: 1 inch Outside Diameter: 4.25 inches Bolt Circle Diameter: 3.12 inches Thickness: 0.5 inch Number of Bolt Holes: 4 Hub Diameter: 1.94 inches Length Through Hub: 0.62 inche
105140011000 Nominal Size: 1-1/4 inch Outside Diameter: 4.62 inches Bolt Circle Diameter: 3.5 inches Thickness: 0.56 inch Number of Bolt Holes: 4 Hub Diameter: 2.31 inches Length Through Hub: 0.75 i
105140012000 Nominal Size: 1-1/2 inch Outside Diameter: 5.0 inches Bolt Circle Diameter: 3.88 inches Thickness: 0.62 inch Number of Bolt Holes: 4 Hub Diameter: 2.56 inches Length Through Hub: 0.81 i
105140020000 Nominal Size: 2 inch Outside Diameter: 6.0 inches Bolt Circle Diameter: 4.75 inches Thickness: 0.69 inch Number of Bolt Holes: 4 Hub Diameter: 3.06 inches Length Through Hub: 0.94 inche
105140022000 Nominal Size: 2-1/2 inch Outside Diameter: 7.0 inches Bolt Circle Diameter: 5.5 inches Thickness: 0.81 inch Number of Bolt Holes: 4 Hub Diameter: 3.56 inches Length Through Hub: 1.06 in
105140030000 Nominal Size: 3 inch Outside Diameter: 7.5 inches Bolt Circle Diameter: 6.0 inches Thickness: 0.88 inch Number of Bolt Holes: 4 Hub Diameter: 4.25 inches Length Through Hub: 1.12 inches
105140032000 Nominal Size: 3-1/2 inch Outside Diameter: 8.5 inches Bolt Circle Diameter: 7.0 inches Thickness: 0.94 inch Number of Bolt Holes: 8 Hub Diameter: 4.81 inches Length Through Hub: 1.19 in
105140040000 Nominal Size: 4 inch Outside Diameter: 9.0 inches Bolt Circle Diameter: 7.5 inches Thickness: 0.88 inch Number of Bolt Holes: 8 Hub Diameter: 5.31 inches Length Through Hub: 1.25 inches
105140050000 Nominal Size: 5 inch Outside Diameter: 10.0 inches Bolt Circle Diameter: 8.5 inches Thickness: 0.88 inch Number of Bolt Holes: 8 Hub Diameter: 6.44 inches Length Through Hub: 1.38 inche
105140060000 Nominal Size: 6 inch Outside Diameter: 11.0 inches Bolt Circle Diameter: 9.5 inches Thickness: 0.94 inch Number of Bolt Holes: 8 Hub Diameter: 7.56 inches Length Through Hub: 1.5 inches
105140080000 Nominal Size: 8 inch Outside Diameter: 13.5 inches Bolt Circle Diameter: 11.75 inches Thickness: 1.06 inch Number of Bolt Holes: 8 Hub Diameter: 9.69 inches Length Through Hub: 1.69 inc
105140100000 Nominal Size: 10 inch Outside Diameter: 16.0 inches Bolt Circle Diameter: 14.25 inches Thickness: 1.12 inch Number of Bolt Holes: 12 Hub Diameter: 12.0 inches Length Through Hub: 1.88 i
105140120000 Nominal Size: 12 inch Outside Diameter: 19.0 inches Bolt Circle Diameter: 17.0 inches Thickness: 1.25 inch Number of Bolt Holes: 12 Hub Diameter: 14.38 inches Length Through Hub: 2.12 i

Quick Overview

This flange is constructed from high-quality carbon steel. It meets industry standards for pressure and temperature ratings, making it a trustworthy choice for professionals.
It is designed for applications requiring a durable and reliable connection in piping and fittings. This flange is ideal for water and gas applications, ensuring a strong seal at various pressures.
Thread connection for easy installation
Suitable for pressures up to 285 psig

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
