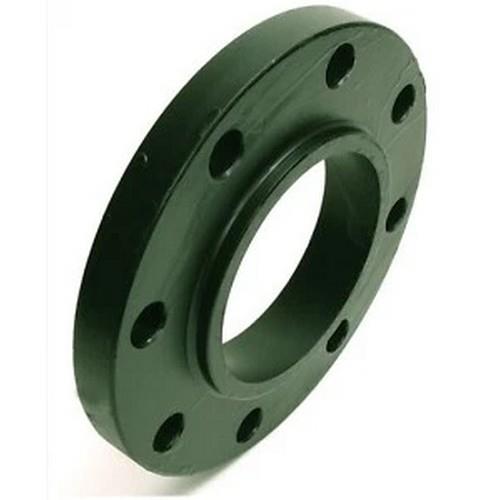

Class 150 SOCKET WELD XXSB FF

Weldbend

SKU / Product InfoQuantity
10516B020000
  • Nominal Size: 2 inch
  • Outside Diameter: 6.0 inches
  • Bolt Circle Diameter: 4.75 inches
  • Thickness: 0.69 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 3.06 inches
  • Length Through Hub: 0.94 inche
10516B022000
  • Nominal Size: 2-1/2 inch
  • Outside Diameter: 7.0 inches
  • Bolt Circle Diameter: 5.5 inches
  • Thickness: 0.81 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 3.56 inches
  • Length Through Hub: 1.06 in
10516B030000
  • Nominal Size: 3 inch
  • Outside Diameter: 7.5 inches
  • Bolt Circle Diameter: 6.0 inches
  • Thickness: 0.88 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 4.25 inches
  • Length Through Hub: 1.12 inches

Quick Overview

    • The flange is suitable for various industrial applications, ensuring durability and reliability under various pressure and temperature conditions. It provides a secure connection in piping systems.
    • Pressure Rating: 285 psig
    • Temperature Rating: -20 to 100 deg F
    • Material: Forged Carbon Steel
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
