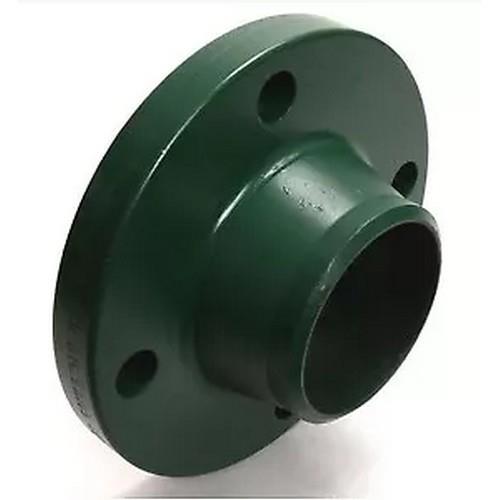

Class 300 WELD NECK XXSB RF

Weldbend

SKU / Product InfoQuantity
10532A002000
  • Nominal Size: 1/2 inch
  • Outside Diameter: 3.75 inches
  • Bolt Circle Diameter: 2.62 inches
  • Thickness: 0.5 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.5 inches
  • Length Through Hub: 2.0 inche
10532A003000
  • Nominal Size: 3/4 inch
  • Outside Diameter: 4.62 inches
  • Bolt Circle Diameter: 3.25 inches
  • Thickness: 0.56 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.88 inches
  • Length Through Hub: 2.19 in
10532A010000
  • Nominal Size: 1 inch
  • Outside Diameter: 4.88 inches
  • Bolt Circle Diameter: 3.5 inches
  • Thickness: 0.62 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.12 inches
  • Length Through Hub: 2.38 inche
10532A011000
  • Nominal Size: 1-1/4 inch
  • Outside Diameter: 5.25 inches
  • Bolt Circle Diameter: 3.88 inches
  • Thickness: 0.69 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.5 inches
  • Length Through Hub: 2.5 in
10532A012000
  • Nominal Size: 1-1/2 inch
  • Outside Diameter: 6.12 inches
  • Bolt Circle Diameter: 4.5 inches
  • Thickness: 0.75 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.75 inches
  • Length Through Hub: 2.63 i
10532A020000
  • Nominal Size: 2 inch
  • Outside Diameter: 6.5 inches
  • Bolt Circle Diameter: 5.0 inches
  • Thickness: 0.81 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.31 inches
  • Length Through Hub: 2.94 inches
10532A022000
  • Nominal Size: 2-1/2 inch
  • Outside Diameter: 7.5 inches
  • Bolt Circle Diameter: 5.88 inches
  • Thickness: 0.94 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.94 inches
  • Length Through Hub: 2.94 i
10532A030000
  • Nominal Size: 3 inch
  • Outside Diameter: 8.25 inches
  • Bolt Circle Diameter: 6.62 inches
  • Thickness: 1.06 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 4.62 inches
  • Length Through Hub: 3.06 inch
10532A040000
  • Nominal Size: 4 inch
  • Outside Diameter: 10.0 inches
  • Bolt Circle Diameter: 7.88 inches
  • Thickness: 1.19 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 5.75 inches
  • Length Through Hub: 3.32 inch
10532A050000
  • Nominal Size: 5 inch
  • Outside Diameter: 11.0 inches
  • Bolt Circle Diameter: 9.25 inches
  • Thickness: 1.31 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 7.0 inches
  • Length Through Hub: 3.82 inche
10532A060000
  • Nominal Size: 6 inch
  • Outside Diameter: 12.5 inches
  • Bolt Circle Diameter: 10.62 inches
  • Thickness: 1.38 inch
  • Number of Bolt Holes: 12
  • Hub Diameter: 8.12 inches
  • Length Through Hub: 3.82 in

Quick Overview

    • This weld neck flange offers high durability and is ideal for various industrial applications in piping systems.
    • Ideal for piping systems requiring high strength and pressure resistance.
    • This flange is constructed from forged carbon steel, ensuring durability. It is suitable for a variety of applications.
    • Pressure Rating: 740 psig
    • Temperature Rating: -20 to 100 degrees Fahrenheit
    • Higher pressure and temperature environments.
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
