Class 300 THREADED FF | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
105341002000 Nominal Size: 1/2 inch Outside Diameter: 3.75 inches Bolt Circle Diameter: 2.62 inches Thickness: 0.5 inch Number of Bolt Holes: 4 Hub Diameter: 1.5 inches Length Through Hub: 0.81 inch
105341003000 Nominal Size: 3/4 inch Outside Diameter: 4.62 inches Bolt Circle Diameter: 3.25 inches Thickness: 0.56 inch Number of Bolt Holes: 4 Hub Diameter: 1.88 inches Length Through Hub: 0.94 in
105341010000 Nominal Size: 1 inch Outside Diameter: 4.88 inches Bolt Circle Diameter: 3.5 inches Thickness: 0.62 inch Number of Bolt Holes: 4 Hub Diameter: 2.12 inches Length Through Hub: 1.0 inches
105341011000 Nominal Size: 1-1/4 inch Outside Diameter: 5.25 inches Bolt Circle Diameter: 3.88 inches Thickness: 0.69 inch Number of Bolt Holes: 4 Hub Diameter: 2.5 inches Length Through Hub: 1.0 in
105341012000 Nominal Size: 1-1/2 inch Outside Diameter: 6.12 inches Bolt Circle Diameter: 4.5 inches Thickness: 0.75 inch Number of Bolt Holes: 4 Hub Diameter: 2.75 inches Length Through Hub: 1.13 i
105341020000 Nominal Size: 2 inch Outside Diameter: 6.5 inches Bolt Circle Diameter: 5.0 inches Thickness: 0.81 inch Number of Bolt Holes: 8 Hub Diameter: 3.31 inches Length Through Hub: 1.25 inches
105341022000 Nominal Size: 2-1/2 inch Outside Diameter: 7.5 inches Bolt Circle Diameter: 5.88 inches Thickness: 0.94 inch Number of Bolt Holes: 8 Hub Diameter: 3.94 inches Length Through Hub: 1.44 i
105341030000 Nominal Size: 3 inch Outside Diameter: 8.25 inches Bolt Circle Diameter: 6.62 inches Thickness: 1.06 inch Number of Bolt Holes: 8 Hub Diameter: 4.62 inches Length Through Hub: 1.63 inch
105341032000 Nominal Size: 3-1/2 inch Outside Diameter: 9.0 inches Bolt Circle Diameter: 7.25 inches Thickness: 1.12 inch Number of Bolt Holes: 8 Hub Diameter: 5.25 inches Length Through Hub: 1.69 i
105341040000 Nominal Size: 4 inch Outside Diameter: 10.0 inches Bolt Circle Diameter: 7.88 inches Thickness: 1.19 inch Number of Bolt Holes: 8 Hub Diameter: 5.75 inches Length Through Hub: 1.82 inch
105341050000 Nominal Size: 5 inch Outside Diameter: 11.0 inches Bolt Circle Diameter: 9.25 inches Thickness: 1.31 inch Number of Bolt Holes: 8 Hub Diameter: 7.0 inches Length Through Hub: 1.94 inche
105341060000 Nominal Size: 6 inch Outside Diameter: 12.5 inches Bolt Circle Diameter: 10.62 inches Thickness: 1.38 inch Number of Bolt Holes: 12 Hub Diameter: 8.12 inches Length Through Hub: 2.0 inc
105341080000 Nominal Size: 8 inch Outside Diameter: 15.0 inches Bolt Circle Diameter: 13.0 inches Thickness: 1.56 inch Number of Bolt Holes: 12 Hub Diameter: 10.25 inches Length Through Hub: 2.38 in
105341100000 Nominal Size: 10 inch Outside Diameter: 17.5 inches Bolt Circle Diameter: 15.25 inches Thickness: 1.81 inch Number of Bolt Holes: 16 Hub Diameter: 12.62 inches Length Through Hub: 2.56
105341120000 Nominal Size: 12 inch Outside Diameter: 20.5 inches Bolt Circle Diameter: 17.75 inches Thickness: 1.94 inch Number of Bolt Holes: 16 Hub Diameter: 15.0 inches Length Through Hub: 2.88 i

Quick Overview

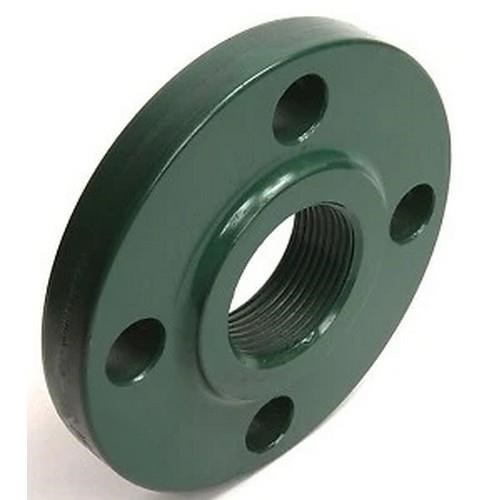

This flange is constructed from high-quality carbon steel. It meets industry standards for pressure and temperature ratings, making it a trustworthy choice for professionals.
It is designed for applications requiring a durable and reliable connection in piping and fittings. This flange is ideal for water and gas applications, ensuring a strong seal at various pressures.
Thread connection for easy installation
Suitable for pressures up to 740 psig
Higher pressure and temperature environments.

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
