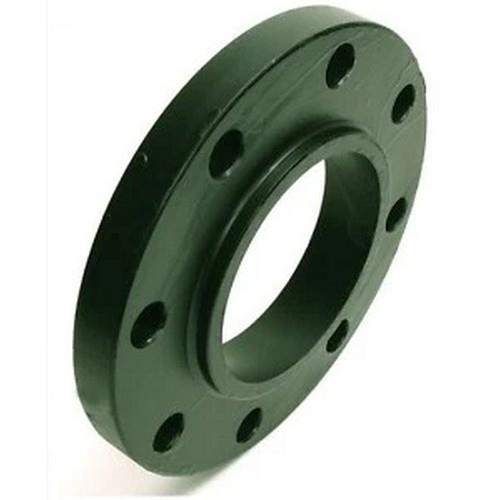

Class 300 SOCKET WELD XXSB RF

Weldbend

SKU / Product InfoQuantity
10536A002000
  • Nominal Size: 1/2 inch
  • Outside Diameter: 3.75 inches
  • Bolt Circle Diameter: 2.62 inches
  • Thickness: 0.5 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.5 inches
  • Length Through Hub: 0.81 inch
10536A003000
  • Nominal Size: 3/4 inch
  • Outside Diameter: 4.62 inches
  • Bolt Circle Diameter: 3.25 inches
  • Thickness: 0.56 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.88 inches
  • Length Through Hub: 0.94 in
10536A010000
  • Nominal Size: 1 inch
  • Outside Diameter: 4.88 inches
  • Bolt Circle Diameter: 3.5 inches
  • Thickness: 0.62 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.12 inches
  • Length Through Hub: 1.0 inches
10536A011000
  • Nominal Size: 1-1/4 inch
  • Outside Diameter: 5.25 inches
  • Bolt Circle Diameter: 3.88 inches
  • Thickness: 0.69 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.5 inches
  • Length Through Hub: 1.0 in
10536A012000
  • Nominal Size: 1-1/2 inch
  • Outside Diameter: 6.12 inches
  • Bolt Circle Diameter: 4.5 inches
  • Thickness: 0.75 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.75 inches
  • Length Through Hub: 1.13 i
10536A020000
  • Nominal Size: 2 inch
  • Outside Diameter: 6.5 inches
  • Bolt Circle Diameter: 5.0 inches
  • Thickness: 0.81 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.31 inches
  • Length Through Hub: 1.25 inches
10536A022000
  • Nominal Size: 2-1/2 inch
  • Outside Diameter: 7.5 inches
  • Bolt Circle Diameter: 5.88 inches
  • Thickness: 0.94 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.94 inches
  • Length Through Hub: 1.44 i
10536A030000
  • Nominal Size: 3 inch
  • Outside Diameter: 8.25 inches
  • Bolt Circle Diameter: 6.62 inches
  • Thickness: 1.06 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 4.62 inches
  • Length Through Hub: 1.63 inch
10536A040000
  • Nominal Size: 4 inch
  • Outside Diameter: 10.0 inches
  • Bolt Circle Diameter: 7.88 inches
  • Thickness: 1.19 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 5.75 inches
  • Length Through Hub: 1.82 inch
10536A050000
  • Nominal Size: 5 inch
  • Outside Diameter: 11.0 inches
  • Bolt Circle Diameter: 9.25 inches
  • Thickness: 1.31 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 7.0 inches
  • Length Through Hub: 1.94 inche
10536A060000
  • Nominal Size: 6 inch
  • Outside Diameter: 12.5 inches
  • Bolt Circle Diameter: 10.62 inches
  • Thickness: 1.38 inch
  • Number of Bolt Holes: 12
  • Hub Diameter: 8.12 inches
  • Length Through Hub: 2.0 inc

Quick Overview

    • Socket Weld Flange Connections are used to attach pipes in high-pressure systems. These types of Flanges allow for the connecting pipe to be inserted into a recessed part of the flange and welded around the outer diameter.
    • Socket Weld offers strong leak-proof connections.
    • Pressure Rating: 740 psig
    • Temperature Rating: -20 to 100 deg F
    • Material: Forged Carbon Steel
    • Higher pressure and temperature environments.
