SKU / Product InfoQuantity
105630002000
  • Nominal Size: 1/2 inch
  • Outside Diameter: 3.75 inches
  • Bolt Circle Diameter: 2.62 inches
  • Thickness: 0.5 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.5 inches
105630003000
  • Nominal Size: 3/4 inch
  • Outside Diameter: 4.62 inches
  • Bolt Circle Diameter: 3.25 inches
  • Thickness: 0.56 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.88 inches
105630010000
  • Nominal Size: 1 inch
  • Outside Diameter: 4.88 inches
  • Bolt Circle Diameter: 3.5 inches
  • Thickness: 0.62 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.12 inches
105630011000
  • Nominal Size: 1-1/4 inch
  • Outside Diameter: 5.25 inches
  • Bolt Circle Diameter: 3.88 inches
  • Thickness: 0.69 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.5 inches
105630012000
  • Nominal Size: 1-1/2 inch
  • Outside Diameter: 6.12 inches
  • Bolt Circle Diameter: 4.5 inches
  • Thickness: 0.75 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.75 inches
105630020000
  • Nominal Size: 2 inch
  • Outside Diameter: 6.5 inches
  • Bolt Circle Diameter: 5.0 inches
  • Thickness: 0.81 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.31 inches
105630022000
  • Nominal Size: 2-1/2 inch
  • Outside Diameter: 7.5 inches
  • Bolt Circle Diameter: 5.88 inches
  • Thickness: 0.94 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.94 inches
105630030000
  • Nominal Size: 3 inch
  • Outside Diameter: 8.25 inches
  • Bolt Circle Diameter: 6.62 inches
  • Thickness: 1.06 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 4.62 inches
105630032000
  • Nominal Size: 3-1/2 inch
  • Outside Diameter: 9.0 inches
  • Bolt Circle Diameter: 7.25 inches
  • Thickness: 1.12 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 5.25 inches
105630040000
  • Nominal Size: 4 inch
  • Outside Diameter: 10.0 inches
  • Bolt Circle Diameter: 7.88 inches
  • Thickness: 1.19 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 5.75 inches
105630050000
  • Nominal Size: 5 inch
  • Outside Diameter: 11.0 inches
  • Bolt Circle Diameter: 9.25 inches
  • Thickness: 1.31 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 7.0 inches
105630060000
  • Nominal Size: 6 inch
  • Outside Diameter: 12.5 inches
  • Bolt Circle Diameter: 10.62 inches
  • Thickness: 1.38 inch
  • Number of Bolt Holes: 12
  • Hub Diameter: 8.12 inches
105630080000
  • Nominal Size: 8 inch
  • Outside Diameter: 15.0 inches
  • Bolt Circle Diameter: 13.0 inches
  • Thickness: 1.56 inch
  • Number of Bolt Holes: 12
  • Hub Diameter: 10.25 inches
105630100000
  • Nominal Size: 10 inch
  • Outside Diameter: 17.5 inches
  • Bolt Circle Diameter: 15.25 inches
  • Thickness: 1.81 inch
  • Number of Bolt Holes: 16
  • Hub Diameter: 12.62 inches
105630120000
  • Nominal Size: 12 inch
  • Outside Diameter: 20.5 inches
  • Bolt Circle Diameter: 17.75 inches
  • Thickness: 1.94 inch
  • Number of Bolt Holes: 16
  • Hub Diameter: 15.0 inches

Quick Overview

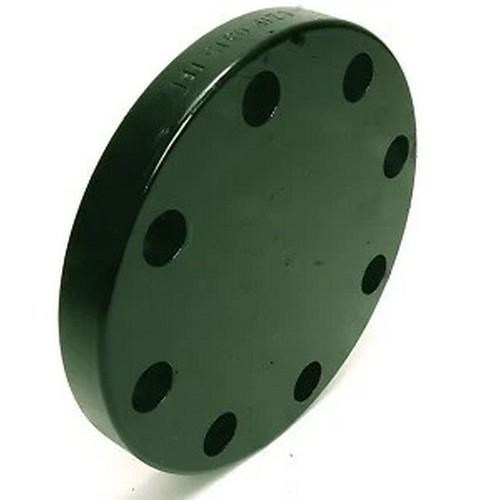

    • This blind flange is ideal for applications requiring a reliable closure in various piping systems and It is fabricated from forged carbon steel.
    • This product features a raised face for effective sealing.
    • Used in demanding, high-pressure, and high-temperature scenarios.
    • Manufactured with a pressure rating of 1480 psi.
    • Suitable for temperatures from negative twenty to one thousand degrees Fahrenheit.
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
