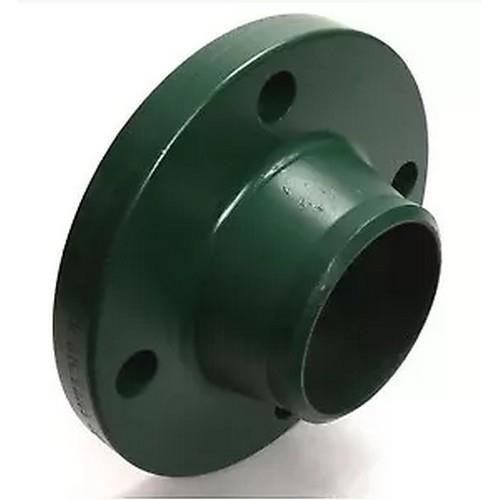

Class 1500 WELD NECK XSB RF

Weldbend

SKU / Product InfoQuantity
105822002000
  • Nominal Size: 1/2 inch
  • Outside Diameter: 3.75 inches
  • Bolt Circle Diameter: 2.62 inches
  • Thickness: 0.5 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.5 inches
  • Length Through Hub: 2.0 inche
105822003000
  • Nominal Size: 3/4 inch
  • Outside Diameter: 4.62 inches
  • Bolt Circle Diameter: 3.25 inches
  • Thickness: 0.56 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 1.88 inches
  • Length Through Hub: 2.19 in
105822010000
  • Nominal Size: 1 inch
  • Outside Diameter: 4.88 inches
  • Bolt Circle Diameter: 3.5 inches
  • Thickness: 0.62 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.12 inches
  • Length Through Hub: 2.38 inche
105822011000
  • Nominal Size: 1-1/4 inch
  • Outside Diameter: 5.25 inches
  • Bolt Circle Diameter: 3.88 inches
  • Thickness: 0.69 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.5 inches
  • Length Through Hub: 2.5 in
105822012000
  • Nominal Size: 1-1/2 inch
  • Outside Diameter: 6.12 inches
  • Bolt Circle Diameter: 4.5 inches
  • Thickness: 0.75 inch
  • Number of Bolt Holes: 4
  • Hub Diameter: 2.75 inches
  • Length Through Hub: 2.63 i
105822020000
  • Nominal Size: 2 inch
  • Outside Diameter: 6.5 inches
  • Bolt Circle Diameter: 5.0 inches
  • Thickness: 0.81 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.31 inches
  • Length Through Hub: 2.94 inches
105822022000
  • Nominal Size: 2-1/2 inch
  • Outside Diameter: 7.5 inches
  • Bolt Circle Diameter: 5.88 inches
  • Thickness: 0.94 inch
  • Number of Bolt Holes: 8
  • Hub Diameter: 3.94 inches
  • Length Through Hub: 2.94 i

Quick Overview

    • This weld neck flange offers high durability and is ideal for various industrial applications in piping systems.
    • Ideal for piping systems requiring high strength and pressure resistance.
    • This flange is constructed from forged carbon steel, ensuring durability. It is suitable for a variety of applications.
    • Pressure Rating: 3705 psig
    • Temperature Rating: -20 to 100 degrees Fahrenheit
    • Used in demanding, high-pressure, and high-temperature scenarios.
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
