Std LR 90 Deg ELBOWS | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
234010002000 Nominal Size: 1/2 inch Outside Diameter: 0.84 inches Inside Diameter: 0.622 inches Wall Thickness: 0.109 inch Pipe Schedule: 40
234010003000 Nominal Size: 3/4 inch Outside Diameter: 1.05 inches Inside Diameter: 0.824 inches Wall Thickness: 0.113 inch Pipe Schedule: 40
234010010000 Nominal Size: 1 inch Outside Diameter: 1.32 inches Inside Diameter: 1.049 inches Wall Thickness: 0.133 inch Pipe Schedule: 40
234010011000 Nominal Size: 1-1/4 inch Outside Diameter: 1.66 inches Inside Diameter: 1.38 inches Wall Thickness: 0.14 inch Pipe Schedule: 40
234010012000 Nominal Size: 1-1/2 inch Outside Diameter: 1.9 inches Inside Diameter: 1.61 inches Wall Thickness: 0.145 inch Pipe Schedule: 40
234010020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 2.067 inches Wall Thickness: 0.154 inch Pipe Schedule: 40
234010022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.469 inches Wall Thickness: 0.203 inch Pipe Schedule: 40
234010030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 3.068 inches Wall Thickness: 0.216 inch Pipe Schedule: 40
234010032000 Nominal Size: 3-1/2 inch Outside Diameter: 4 inches Inside Diameter: 3.548 inches Wall Thickness: 0.226 inch Pipe Schedule: 40
234010040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 4.026 inches Wall Thickness: 0.237 inch Pipe Schedule: 40
234010050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 5.047 inches Wall Thickness: 0.258 inch Pipe Schedule: 40
234010060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 6.065 inches Wall Thickness: 0.28 inch Pipe Schedule: 40
234010080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 7.981 inches Wall Thickness: 0.322 inch Pipe Schedule: 40
234010100000 Nominal Size: 10 inch Outside Diameter: 10.75 inches Inside Diameter: 10.02 inches Wall Thickness: 0.365 inch Pipe Schedule: 40
234010120000 Nominal Size: 12 inch Outside Diameter: 12.75 inches Inside Diameter: 12 inches Wall Thickness: 0.375 inch Pipe Schedule: *
234010140000 Nominal Size: 14 inch Outside Diameter: 14 inches Inside Diameter: 13.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30
234010160000 Nominal Size: 16 inch Outside Diameter: 16 inches Inside Diameter: 15.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30
234010180000 Nominal Size: 18 inch Outside Diameter: 18 inches Inside Diameter: 17.25 inches Wall Thickness: 0.375 inch Pipe Schedule: *
234010200000 Nominal Size: 20 inch Outside Diameter: 20 inches Inside Diameter: 19.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20
234010240000 Nominal Size: 24 inch Outside Diameter: 24 inches Inside Diameter: 23.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20

Quick Overview

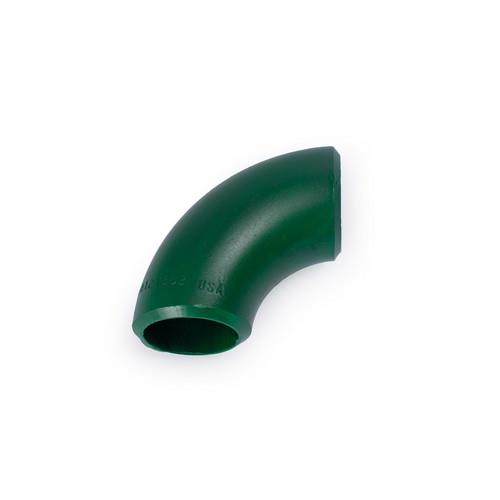

This elbow fitting allows for smooth transitions in piping systems while maintaining flow efficiency and structural integrity. Ideal for long-term use in various environments, it meets industry standards for quality and safety.
This fitting is designed to handle various pressures and temperatures, making it suitable for industrial plumbing and HVAC systems.
Long radius design for smooth flow.
Constructed from carbon steel for durability.
Meets ASTM A234 Grade WPB and ASME B16.9 standards.
Type: Long Radius
End Style: Butt Welded
Fitting Type: 90 deg Elbow
Material: Carbon Steel
Temperature Rating: -20 to 650 deg F

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
