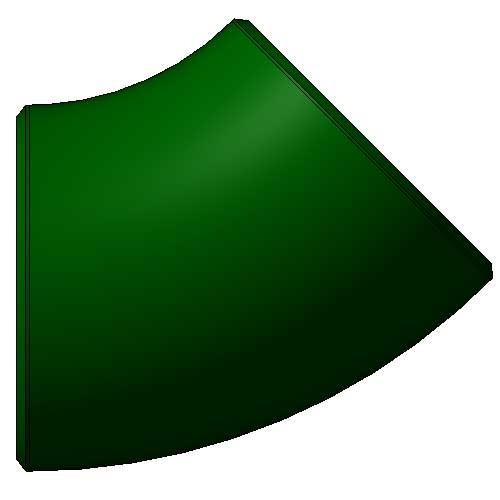

S 160 LR 45 Deg ELBOWS

Weldbend

SKU / Product Info	Quantity
23402C020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 1.692 inches Wall Thickness: 0.344 inch Pipe Schedule: 160
23402C022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.13 inches Wall Thickness: 0.375 inch Pipe Schedule: 160
23402C030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 2.624 inches Wall Thickness: 0.438 inch Pipe Schedule: 160
23402C040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 3.438 inches Wall Thickness: 0.531 inch Pipe Schedule: 160
23402C050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 4.31 inches Wall Thickness: 0.625 inch Pipe Schedule: 160
23402C060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 5.182 inches Wall Thickness: 0.719 inch Pipe Schedule: 160
23402C080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 6.808 inches Wall Thickness: 0.906 inch Pipe Schedule: 160

Weldbend's S160 LR 45° Elbows are heavy-duty, long-radius carbon steel butt-weld fittings built for high-pressure, high-temperature systems. They conform to ASTM A234 WPB and ASME B16.9 standards.
Ideal for: industrial applications like chemical plants, power generation, steam systems, and oil & gas pipelines where durability and smooth flow transitions are crucial.
Key Features:
Material: Carbon Steel (ASTM A234 WPB)
Type: Long Radius 45° Elbow
End Style: Butt Weld
Schedule: Sch.160 (extra thick)
Standards: ANSI/ASME B16.9 & ASTM A234 WPB

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Manufacturer: Weldbend
