Std STRAIGHT TEES | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
234050002000 Nominal Size: 1/2 inch Outside Diameter: 0.84 inches Inside Diameter: 0.622 inches Wall Thickness: 0.109 inch Pipe Schedule: 40
234050003000 Nominal Size: 3/4 inch Outside Diameter: 1.05 inches Inside Diameter: 0.824 inches Wall Thickness: 0.113 inch Pipe Schedule: 40
234050010000 Nominal Size: 1 inch Outside Diameter: 1.32 inches Inside Diameter: 1.049 inches Wall Thickness: 0.133 inch Pipe Schedule: 40
234050011000 Nominal Size: 1-1/4 inch Outside Diameter: 1.66 inches Inside Diameter: 1.38 inches Wall Thickness: 0.14 inch Pipe Schedule: 40
234050012000 Nominal Size: 1-1/2 inch Outside Diameter: 1.9 inches Inside Diameter: 1.61 inches Wall Thickness: 0.145 inch Pipe Schedule: 40
234050020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 2.067 inches Wall Thickness: 0.154 inch Pipe Schedule: 40
234050022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.469 inches Wall Thickness: 0.203 inch Pipe Schedule: 40
234050030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 3.068 inches Wall Thickness: 0.216 inch Pipe Schedule: 40
234050032000 Nominal Size: 3-1/2 inch Outside Diameter: 4 inches Inside Diameter: 3.548 inches Wall Thickness: 0.226 inch Pipe Schedule: 40
234050040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 4.026 inches Wall Thickness: 0.237 inch Pipe Schedule: 40
234050050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 5.047 inches Wall Thickness: 0.258 inch Pipe Schedule: 40
234050060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 6.065 inches Wall Thickness: 0.28 inch Pipe Schedule: 40
234050080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 7.981 inches Wall Thickness: 0.322 inch Pipe Schedule: 40
234050100000 Nominal Size: 10 inch Outside Diameter: 10.75 inches Inside Diameter: 10.02 inches Wall Thickness: 0.365 inch Pipe Schedule: 40
234050120000 Nominal Size: 12 inch Outside Diameter: 12.75 inches Inside Diameter: 12 inches Wall Thickness: 0.375 inch Pipe Schedule: *
234050140000 Nominal Size: 14 inch Outside Diameter: 14 inches Inside Diameter: 13.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30
234050160000 Nominal Size: 16 inch Outside Diameter: 16 inches Inside Diameter: 15.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30
234050180000 Nominal Size: 18 inch Outside Diameter: 18 inches Inside Diameter: 17.25 inches Wall Thickness: 0.375 inch Pipe Schedule: *
234050200000 Nominal Size: 20 inch Outside Diameter: 20 inches Inside Diameter: 19.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20
234050240000 Nominal Size: 24 inch Outside Diameter: 24 inches Inside Diameter: 23.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20

Quick Overview

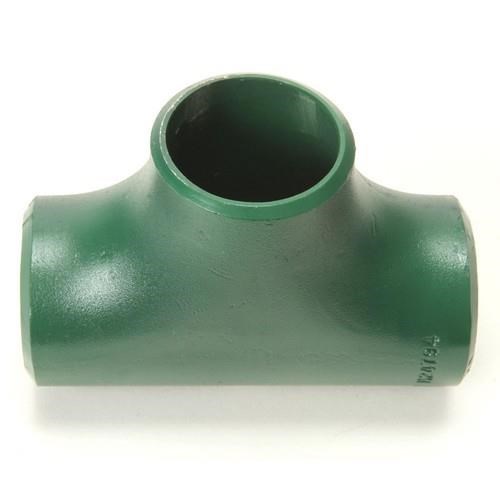

A standard long-radius straight pipe tee made from ASTM A234 WPB carbon steel, designed for butt-welded connections in industrial pipe systems. Conforms to ASME B16.9 standards.
Ideal For: Branching a main line at 90° in applications such as chemical processing, HVAC, oil & gas, waterworks, and general industrial piping.
Key Features:
Material: ASTM A234 WPB carbon steel
Type: Straight Tee (equal flow in main and branch)
End Style: Butt Weld
Schedule: SCH 40 / STD (standard wall thickness)
Standards: ASME B16.9 & ASTM A234 WPB

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
