XS STRAIGHT TEES | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
234051002000 Nominal Size: 1/2 inch Outside Diameter: 0.84 inches Inside Diameter: 0.546 inches Wall Thickness: 0.147 inch Pipe Schedule: 80
234051003000 Nominal Size: 3/4 inch Outside Diameter: 1.05 inches Inside Diameter: 0.742 inches Wall Thickness: 0.154 inch Pipe Schedule: 80
234051010000 Nominal Size: 1 inch Outside Diameter: 1.32 inches Inside Diameter: 0.957 inches Wall Thickness: 0.179 inch Pipe Schedule: 80
234051011000 Nominal Size: 1-1/4 inch Outside Diameter: 1.66 inches Inside Diameter: 1.278 inches Wall Thickness: 0.191 inch Pipe Schedule: 80
234051012000 Nominal Size: 1-1/2 inch Outside Diameter: 1.9 inches Inside Diameter: 1.5 inches Wall Thickness: 0.2 inch Pipe Schedule: 80
234051020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 1.939 inches Wall Thickness: 0.218 inch Pipe Schedule: 80
234051022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.323 inches Wall Thickness: 0.276 inch Pipe Schedule: 80
234051030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 2.9 inches Wall Thickness: 0.3 inch Pipe Schedule: 80
234051032000 Nominal Size: 3-1/2 inch Outside Diameter: 4 inches Inside Diameter: 3.364 inches Wall Thickness: 0.318 inch Pipe Schedule: 80
234051040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 3.826 inches Wall Thickness: 0.337 inch Pipe Schedule: 80
234051050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 4.813 inches Wall Thickness: 0.375 inch Pipe Schedule: 80
234051060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 5.761 inches Wall Thickness: 0.432 inch Pipe Schedule: 80
234051080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 7.625 inches Wall Thickness: 0.5 inch Pipe Schedule: 80
234051100000 Nominal Size: 10 inch Outside Diameter: 10.75 inches Inside Diameter: 9.75 inches Wall Thickness: 0.5 inch Pipe Schedule: 60
234051120000 Nominal Size: 12 inch Outside Diameter: 12.75 inches Inside Diameter: 11.75 inches Wall Thickness: 0.5 inch Pipe Schedule: *
234051140000 Nominal Size: 14 inch Outside Diameter: 14 inches Inside Diameter: 13 inches Wall Thickness: 0.5 inch Pipe Schedule: *
234051160000 Nominal Size: 16 inch Outside Diameter: 16 inches Inside Diameter: 15 inches Wall Thickness: 0.5 inch Pipe Schedule: 40
234051180000 Nominal Size: 18 inch Outside Diameter: 18 inches Inside Diameter: 17 inches Wall Thickness: 0.5 inch Pipe Schedule: *
234051200000 Nominal Size: 20 inch Outside Diameter: 20 inches Inside Diameter: 19 inches Wall Thickness: 0.5 inch Pipe Schedule: 30
234051240000 Nominal Size: 24 inch Outside Diameter: 24 inches Inside Diameter: 23 inches Wall Thickness: 0.5 inch Pipe Schedule: *

Quick Overview

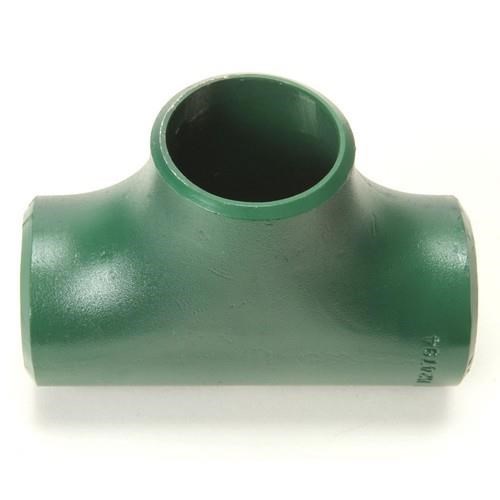

Weldbend's XS Straight Tees are heavy-duty carbon steel fittings designed for equal-flow branching in high-pressure piping systems. Conforming to ASTM A234 WPB and ASME B16.9 standards, these tees are built for durability and performance.
Ideal for: Industrial applications requiring strong, reliable connections under extreme conditions—commonly used in chemical processing, oil & gas, power, steam, and HVAC systems.
Key Features:
Material: Carbon Steel (ASTM A234 WPB)
Type: Straight Tee (equal main and branch)
End Style: Butt Weld
Schedule: XS (Extra Strong) – thicker walls for high-pressure resistance
Standards: ANSI/ASME B16.9 & ASTM A234 WPB

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
