XS STUB ENDS

Weldbend

SKU / Product Info	Quantity
234071002000 Nominal Size: 1/2 inch Outside Diameter (Max.): 0.896 inches Outside Diameter (Min.): 0.809 inches Wall & Lap Thickness: 0.147 inch Overall Length: 3 inch Pipe Schedule: 80
234071003000 Nominal Size: 3/4 inch Outside Diameter (Max.): 1.106 inches Outside Diameter (Min.): 1.019 inches Wall & Lap Thickness: 0.154 inch Overall Length: 3 inch Pipe Schedule: 80
234071010000 Nominal Size: 1 inch Outside Diameter (Max.): 1.376 inches Outside Diameter (Min.): 1.284 inches Wall & Lap Thickness: 0.179 inch Overall Length: 4 inch Pipe Schedule: 80
234071011000 Nominal Size: 1-1/4 inch Outside Diameter (Max.): 1.716 inches Outside Diameter (Min.): 1.629 inches Wall & Lap Thickness: 0.191 inch Overall Length: 4 inch Pipe Schedule: 80
234071012000 Nominal Size: 1-1/2 inch Outside Diameter (Max.): 1.965 inches Outside Diameter (Min.): 1.869 inches Wall & Lap Thickness: 0.2 inch Overall Length: 4 inch Pipe Schedule: 80
234071020000 Nominal Size: 2 inch Outside Diameter (Max.): 2.456 inches Outside Diameter (Min.): 2.344 inches Wall & Lap Thickness: 0.218 inch Overall Length: 6 inch Pipe Schedule: 80
234071022000 Nominal Size: 2-1/2 inch Outside Diameter (Max.): 2.966 inches Outside Diameter (Min.): 2.844 inches Wall & Lap Thickness: 0.276 inch Overall Length: 6 inch Pipe Schedule: 80
234071030000 Nominal Size: 3 inch Outside Diameter (Max.): 3.596 inches Outside Diameter (Min.): 3.469 inches Wall & Lap Thickness: 0.3 inch Overall Length: 6 inch Pipe Schedule: 80
234071032000 Nominal Size: 3-1/2 inch Outside Diameter (Max.): 4.096 inches Outside Diameter (Min.): 3.969 inches Wall & Lap Thickness: 0.318 inch Overall Length: 6 inch Pipe Schedule: 80
234071040000 Nominal Size: 4 inch Outside Diameter (Max.): 4.593 inches Outside Diameter (Min.): 4.469 inches Wall & Lap Thickness: 0.337 inch Overall Length: 6 inch Pipe Schedule: 80
234071050000 Nominal Size: 5 inch Outside Diameter (Max.): 5.683 inches Outside Diameter (Min.): 5.532 inches Wall & Lap Thickness: 0.375 inch Overall Length: 8 inch Pipe Schedule: 80
234071060000 Nominal Size: 6 inch Outside Diameter (Max.): 6.743 inches Outside Diameter (Min.): 6.594 inches Wall & Lap Thickness: 0.432 inch Overall Length: 8 inch Pipe Schedule: 80

Quick Overview

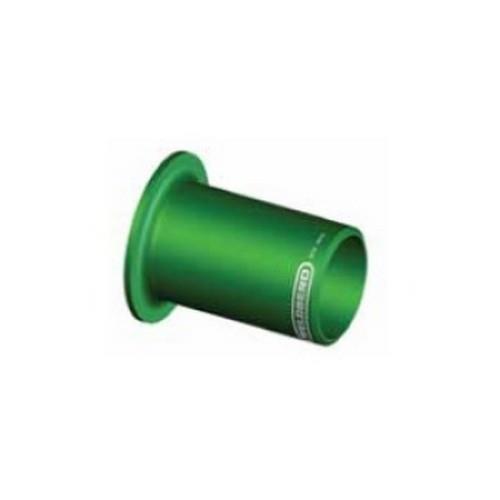

Weldbend’s XS Stub Ends are heavy-duty carbon steel fittings designed for lap-joint flange connections. These extra-strong, butt-weld stub ends (Schedule XS/SCH 80/XH) pair with lap-joint flanges to allow easy alignment and maintenance in high-pressure systems. They comply with ASTM A234 WPB and ANSI/ASME B16.9 standards.
Ideal For: Industrial piping where frequent disassembly or flange alignment is required—widely used in chemical, oil & gas, power, steam, and HVAC systems.
Key Features:
Material: Carbon Steel (ASTM A234 WPB)
Type: Lap-Joint Stub End (ASA type)
End Style: Butt Weld (for pipe)
Schedule: XS (Extra Strong, equivalent to SCH 80/XH) — suited for high-pressure applications
Standards: ANSI/ASME B16.9 & ASTM A234 WPB

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
