SKU / Product Info	Quantity
234080002000 Nominal Size: 1/2 inch Outside Diameter: 0.84 inches Inside Diameter: 0.622 inches Wall Thickness: 0.109 inch Pipe Schedule: 40 Height: 1.0 inch
234080003000 Nominal Size: 3/4 inch Outside Diameter: 1.05 inches Inside Diameter: 0.824 inches Wall Thickness: 0.113 inch Pipe Schedule: 40 Height: 1.0 inch
234080010000 Nominal Size: 1 inch Outside Diameter: 1.32 inches Inside Diameter: 1.049 inches Wall Thickness: 0.133 inch Pipe Schedule: 40 Height: 1.5 inch
234080011000 Nominal Size: 1-1/4 inch Outside Diameter: 1.66 inches Inside Diameter: 1.38 inches Wall Thickness: 0.14 inch Pipe Schedule: 40 Height: 1.5 inch
234080012000 Nominal Size: 1-1/2 inch Outside Diameter: 1.9 inches Inside Diameter: 1.61 inches Wall Thickness: 0.145 inch Pipe Schedule: 40 Height: 1.5 inch
234080020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 2.067 inches Wall Thickness: 0.154 inch Pipe Schedule: 40 Height: 1.5 inch
234080022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.469 inches Wall Thickness: 0.203 inch Pipe Schedule: 40 Height: 1.5 inch
234080030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 3.068 inches Wall Thickness: 0.216 inch Pipe Schedule: 40 Height: 2.0 inch
234080032000 Nominal Size: 3-1/2 inch Outside Diameter: 4 inches Inside Diameter: 3.548 inches Wall Thickness: 0.226 inch Pipe Schedule: 40 Height: 2.5 inch
234080040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 4.026 inches Wall Thickness: 0.237 inch Pipe Schedule: 40 Height: 2.5 inch
234080050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 5.047 inches Wall Thickness: 0.258 inch Pipe Schedule: 40 Height: 3.0 inch
234080060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 6.065 inches Wall Thickness: 0.28 inch Pipe Schedule: 40 Height: 3.5 inch
234080080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 7.981 inches Wall Thickness: 0.322 inch Pipe Schedule: 40 Height: 4.0 inch
234080100000 Nominal Size: 10 inch Outside Diameter: 10.75 inches Inside Diameter: 10.02 inches Wall Thickness: 0.365 inch Pipe Schedule: 40 Height: 5.0 inch
234080120000 Nominal Size: 12 inch Outside Diameter: 12.75 inches Inside Diameter: 12 inches Wall Thickness: 0.375 inch Pipe Schedule: * Height: 6.0 inch
234080140000 Nominal Size: 14 inch Outside Diameter: 14 inches Inside Diameter: 13.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30 Height: 6.5 inch
234080160000 Nominal Size: 16 inch Outside Diameter: 16 inches Inside Diameter: 15.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 30 Height: 7.0 inch
234080180000 Nominal Size: 18 inch Outside Diameter: 18 inches Inside Diameter: 17.25 inches Wall Thickness: 0.375 inch Pipe Schedule: * Height: 8.0 inch
234080200000 Nominal Size: 20 inch Outside Diameter: 20 inches Inside Diameter: 19.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20 Height: 9.0 inch
234080240000 Nominal Size: 24 inch Outside Diameter: 24 inches Inside Diameter: 23.25 inches Wall Thickness: 0.375 inch Pipe Schedule: 20 Height: 10.5 inch

Quick Overview

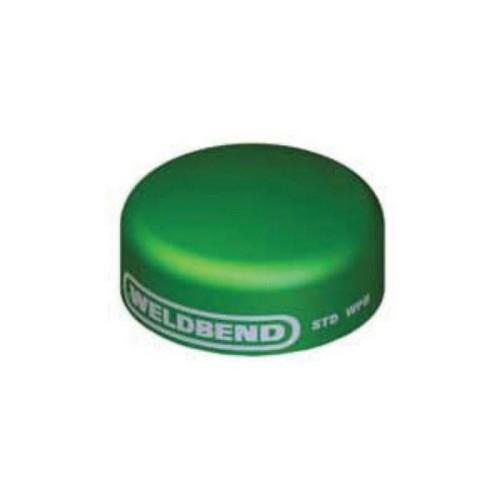

Weldbend’s standard schedule carbon-steel butt-weld caps are designed to seal pipe ends safely and reliably. Made from ASTM A234 WPB material and meeting ASME B16.9 standard
Ideal for: Capping pipelines in chemical, steam, HVAC, oil & gas, waterworks, and general industrial systems.
Key Features:
Material: Carbon Steel (ASTM A234 WPB)
End Style: Butt Weld – for strong, welded pipe termination
Schedule: STD (Schedule 40) – standard wall thickness
Standards: ANSI/ASME B16.9 & ASTM A234 WPB

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
