XS CAPS | Tri-State Industrial Solutions, Inc.

SKU / Product Info	Quantity
234081002000 Nominal Size: 1/2 inch Outside Diameter: 0.84 inches Inside Diameter: 0.546 inches Wall Thickness: 0.147 inch Pipe Schedule: 80 Height: 1.0 inch
234081003000 Nominal Size: 3/4 inch Outside Diameter: 1.05 inches Inside Diameter: 0.742 inches Wall Thickness: 0.154 inch Pipe Schedule: 80 Height: 1.0 inch
234081010000 Nominal Size: 1 inch Outside Diameter: 1.32 inches Inside Diameter: 0.957 inches Wall Thickness: 0.179 inch Pipe Schedule: 80 Height: 1.5 inch
234081011000 Nominal Size: 1-1/4 inch Outside Diameter: 1.66 inches Inside Diameter: 1.278 inches Wall Thickness: 0.191 inch Pipe Schedule: 80 Height: 1.5 inch
234081012000 Nominal Size: 1-1/2 inch Outside Diameter: 1.9 inches Inside Diameter: 1.5 inches Wall Thickness: 0.2 inch Pipe Schedule: 80 Height: 1.5 inch
234081020000 Nominal Size: 2 inch Outside Diameter: 2.38 inches Inside Diameter: 1.939 inches Wall Thickness: 0.218 inch Pipe Schedule: 80 Height: 1.5 inch
234081022000 Nominal Size: 2-1/2 inch Outside Diameter: 2.88 inches Inside Diameter: 2.323 inches Wall Thickness: 0.276 inch Pipe Schedule: 80 Height: 1.5 inch
234081030000 Nominal Size: 3 inch Outside Diameter: 3.5 inches Inside Diameter: 2.9 inches Wall Thickness: 0.3 inch Pipe Schedule: 80 Height: 2.0 inch
234081032000 Nominal Size: 3-1/2 inch Outside Diameter: 4 inches Inside Diameter: 3.364 inches Wall Thickness: 0.318 inch Pipe Schedule: 80 Height: 2.5 inch
234081040000 Nominal Size: 4 inch Outside Diameter: 4.5 inches Inside Diameter: 3.826 inches Wall Thickness: 0.337 inch Pipe Schedule: 80 Height: 2.5 inch
234081050000 Nominal Size: 5 inch Outside Diameter: 5.56 inches Inside Diameter: 4.813 inches Wall Thickness: 0.375 inch Pipe Schedule: 80 Height: 3.0 inch
234081060000 Nominal Size: 6 inch Outside Diameter: 6.62 inches Inside Diameter: 5.761 inches Wall Thickness: 0.432 inch Pipe Schedule: 80 Height: 3.5 inch
234081080000 Nominal Size: 8 inch Outside Diameter: 8.62 inches Inside Diameter: 7.625 inches Wall Thickness: 0.5 inch Pipe Schedule: 80 Height: 4.0 inch
234081100000 Nominal Size: 10 inch Outside Diameter: 10.75 inches Inside Diameter: 9.75 inches Wall Thickness: 0.5 inch Pipe Schedule: 60 Height: 5.0 inch
234081120000 Nominal Size: 12 inch Outside Diameter: 12.75 inches Inside Diameter: 11.75 inches Wall Thickness: 0.5 inch Pipe Schedule: * Height: 6.0 inch
234081140000 Nominal Size: 14 inch Outside Diameter: 14 inches Inside Diameter: 13 inches Wall Thickness: 0.5 inch Pipe Schedule: * Height: 6.5 inch
234081160000 Nominal Size: 16 inch Outside Diameter: 16 inches Inside Diameter: 15 inches Wall Thickness: 0.5 inch Pipe Schedule: 40 Height: 7.0 inch
234081180000 Nominal Size: 18 inch Outside Diameter: 18 inches Inside Diameter: 17 inches Wall Thickness: 0.5 inch Pipe Schedule: * Height: 8.0 inch
234081200000 Nominal Size: 20 inch Outside Diameter: 20 inches Inside Diameter: 19 inches Wall Thickness: 0.5 inch Pipe Schedule: 30 Height: 9.0 inch
234081240000 Nominal Size: 24 inch Outside Diameter: 24 inches Inside Diameter: 23 inches Wall Thickness: 0.5 inch Pipe Schedule: * Height: 10.5 inch

Quick Overview

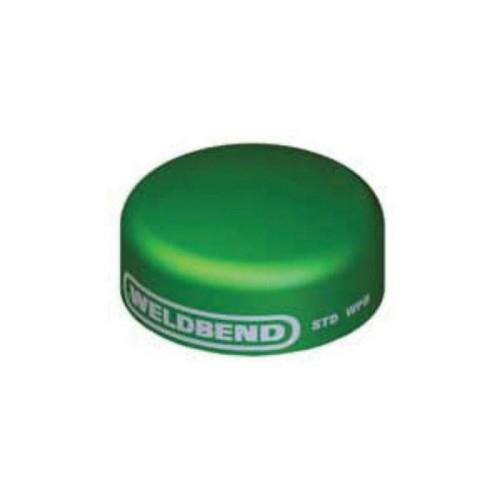

Weldbend’s XS Caps are heavy-duty carbon steel butt-weld fittings, used to permanently seal pipe ends. Made from ASTM A234 WPB material and conforming to ASME/ANSI B16.9 and ASTM A234 standards
.
Ideal for: High-pressure systems in chemical, oil & gas, power, steam, and HVAC piping where robust sealing and structural integrity are essential.
Key Features:
Material: Carbon Steel (ASTM A234 WPB)
End Style: Butt Weld – for strong welded pipe terminations
Schedule: XS (Extra Strong, equivalent to SCH 80/XH) – thick-wall construction suited for high pressures
Standards: ANSI/ASME B16.9 & ASTM A234 WPB

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Weldbend
