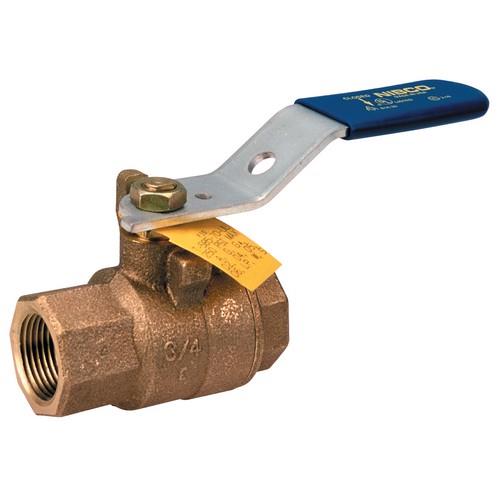

Two-Piece Bronze Ball Valve - Full Port, UL Listed

Nibco

SKU / Product InfoQuantity
NL96024
Nominal Size: 1/4
NL96025
Nominal Size: 3/8
NL96026
Nominal Size: 1/2
NL96028
Nominal Size: 3/4
NL9602A
Nominal Size: 1
NLZ95026
Nominal Size: 1/2

Quick Overview

    • Fig no: T-585-70-UL
    • The NIBCO® bronze ball valve is UL Listed for natural and LP gas and flammable fluid applications. The two-piece valve provides bubble-tight shutoff at 250 PSI.
    • The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is designed to be used on gasoline, fuel oil, LP gas and other flammable fluids. The two-piece valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details


  • Type of Valve : Ball Valve
  • Valve End Connection Type : T -- Female NPT Thread (FIPT)
  • Features :
  • Valve pressure rating 250 psi/17.2 bar non-shock LP gas per UL842
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, zinc plated, Plastisol coated
  • Threaded end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to UL842
  • CUL YSDT7
  • CSA certified to ANSI/ASME B16.33 and CGA 3.16 for natural and propane gas to 125 psig (1/4" to 1")

Additional Information


Manufacturer: Nibco
