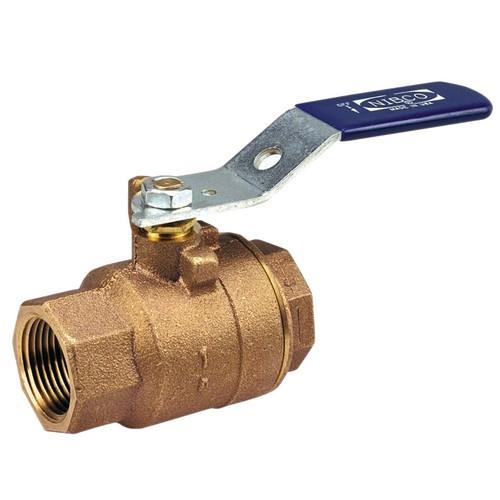

Two-Piece Bronze Ball Valve - Full Port, Threaded

Nibco

SKU / Product InfoQuantity
NL95004
Nominal Size: 1/4
NL95005
Nominal Size: 3/8
NL95006
Nominal Size: 1/2
NL95008
Nominal Size: 3/4
NL9500A
Nominal Size: 1
NL95055
Nominal Size: 3/8
NL950C6
Nominal Size: 1/2
NL950E4
Nominal Size: 1/4
NL950E5
Nominal Size: 3/8
NL950E6
Nominal Size: 1/2
NL950E8
Nominal Size: 3/4
NL950EA
Nominal Size: 1
NL950F4
Nominal Size: 1/4
NL950F5
Nominal Size: 3/8
NL950F6
Nominal Size: 1/2
NL950F8
Nominal Size: 3/4
NL950FA
Nominal Size: 1
NL950L4
Nominal Size: 1/4
NL950L5
Nominal Size: 3/8
NL950L6
Nominal Size: 1/2
NL950L8
Nominal Size: 3/4
NL950LA
Nominal Size: 1
NL9510B
Nominal Size: 11/4
NL9510C
Nominal Size: 11/2
NL9510D
Nominal Size: 2
NL951LB
Nominal Size: 11/4
NL951LC
Nominal Size: 11/2
NL951LD
Nominal Size: 2
NL9520B
Nominal Size: 11/4
NL9520C
Nominal Size: 11/2
NL9520D
Nominal Size: 2
NL9520FB
Nominal Size: 11/4
NL9520FC
Nominal Size: 11/2
NL9520FD
Nominal Size: 2
NL952P4
Nominal Size: 1/4
NL952P5
Nominal Size: 3/8
NL952P6
Nominal Size: 1/2
NL952P8
Nominal Size: 3/4
NL952PA
Nominal Size: 1
NL952PB
Nominal Size: 11/4
NL952PC
Nominal Size: 11/2
NL952PD
Nominal Size: 2
NL9530B
Nominal Size: 11/4
NL9530C
Nominal Size: 11/2
NL9530D
Nominal Size: 2
NL953LB
Nominal Size: 11/4
NL953LC
Nominal Size: 11/2
NL953LD
Nominal Size: 2
NL9540B
Nominal Size: 11/4
NL9540C
Nominal Size: 11/2
NL9540D
Nominal Size: 2
NL958P6
Nominal Size: 1/2
NL958P8
Nominal Size: 3/4
NL95B06
Nominal Size: 1/2
NL95B08
Nominal Size: 3/4
NL95B0A
Nominal Size: 1
NL95B0B
Nominal Size: 11/4
NL95B0C
Nominal Size: 11/2
NL95B0D
Nominal Size: 2
NL95C06
Nominal Size: 1/2
NL95C08
Nominal Size: 3/4
NL95C0A
Nominal Size: 1
NL95C0B
Nominal Size: 11/4
NL95C0C
Nominal Size: 11/2
NL95C0D
Nominal Size: 2
NL95I04
Nominal Size: 1/4
NL95I05
Nominal Size: 3/8
NL95I06
Nominal Size: 1/2
NL95I08
Nominal Size: 3/4
NL95I0A
Nominal Size: 1
NL95NLX4
Nominal Size: 1/4
NL95NLX5
Nominal Size: 3/8
NL95NLX6
Nominal Size: 1/2
NL95NLX8
Nominal Size: 3/4
NL95NLXA
Nominal Size: 1
NL95NLXB
Nominal Size: 11/4
NL95NLXC
Nominal Size: 11/2
NL95NLXD
Nominal Size: 2
NL95R04
Nominal Size: 1/4
NL95R05
Nominal Size: 3/8
NL95R06
Nominal Size: 1/2
NL95R08
Nominal Size: 3/4
NL95R0A
Nominal Size: 1
NL95T34
Nominal Size: 1/4
NL95T35
Nominal Size: 3/8
NL95T36
Nominal Size: 1/2
NL95T38
Nominal Size: 3/4
NL95T3A
Nominal Size: 1
NL95T3B
Nominal Size: 11/4
NL95T3C
Nominal Size: 11/2
NL95T3D
Nominal Size: 2
NL95V08
Nominal Size: 3/4
NL95V0A
Nominal Size: 1
NL95W04
Nominal Size: 1/4
NL95W05
Nominal Size: 3/8
NL95W06
Nominal Size: 1/2
NL95W08
Nominal Size: 3/4
NL95W0A
Nominal Size: 1
NL95W34
Nominal Size: 1/4
NL95W35
Nominal Size: 3/8
NL95W36
Nominal Size: 1/2
NL95W38
Nominal Size: 3/4
NL95W3A
Nominal Size: 1

Quick Overview

    • Fig no: T-585-70
    • The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, low pressure steam, and compressed air.
    • The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

  • Type of Valve : Ball Valve
  • Valve End Connection Type : T -- Female NPT Thread (FIPT)
  • Features :
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Threaded end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
