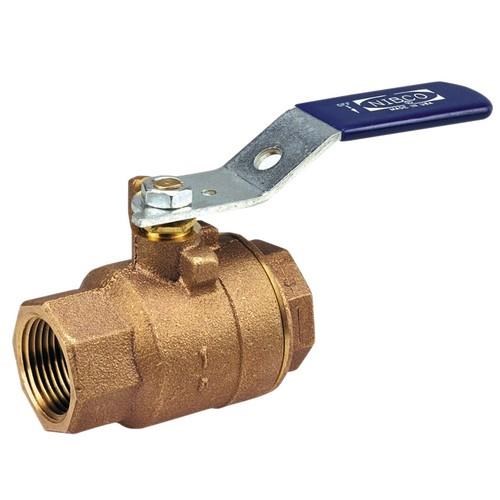

Two-Piece Bronze Ball Valve - Stainless Steel Trim, Threaded End Connections

SKU / Product Info	Quantity
NL951CB Nominal Size: 11/4
NL951CC Nominal Size: 11/2
NL951CD Nominal Size: 2
NL951HB Nominal Size: 11/4
NL951HC Nominal Size: 11/2
NL951HD Nominal Size: 2
NL951IB Nominal Size: 11/4
NL951IC Nominal Size: 11/2
NL951ID Nominal Size: 2
NL95H04 Nominal Size: 1/4
NL95H05 Nominal Size: 3/8
NL95H06 Nominal Size: 1/2
NL95H08 Nominal Size: 3/4
NL95H0A Nominal Size: 1
NL95H14 Nominal Size: 1/4
NL95H15 Nominal Size: 3/8
NL95H16 Nominal Size: 1/2
NL95H18 Nominal Size: 3/4
NL95H1A Nominal Size: 1
NL95H24 Nominal Size: 1/4
NL95H25 Nominal Size: 3/8
NL95H26 Nominal Size: 1/2
NL95H28 Nominal Size: 3/4
NL95H2A Nominal Size: 1
NL95H2B Nominal Size: 11/4
NL95H2C Nominal Size: 11/2
NL95H2D Nominal Size: 2
NL95H38 Nominal Size: 3/4
NL95H44 Nominal Size: 1/4
NL95H45 Nominal Size: 3/8
NL95H46 Nominal Size: 1/2
NL95H48 Nominal Size: 3/4
NL95H4A Nominal Size: 1
NL95H4B Nominal Size: 11/4
NL95H4C Nominal Size: 11/2
NL95H4D Nominal Size: 2
NL95HE4 Nominal Size: 1/4
NL95HE5 Nominal Size: 3/8
NL95HE6 Nominal Size: 1/2
NL95HE8 Nominal Size: 3/4
NL95HEA Nominal Size: 1
NL95HF4 Nominal Size: 1/4
NL95HF5 Nominal Size: 3/8
NL95HF6 Nominal Size: 1/2
NL95HF8 Nominal Size: 3/4
NL95HFA Nominal Size: 1
NL95HFB Nominal Size: 11/4
NL95HFC Nominal Size: 11/2
NL95HFD Nominal Size: 2
NL95HFFB Nominal Size: 11/4
NL95HFFC Nominal Size: 11/2
NL95HFFD Nominal Size: 2
NL95HH4 Nominal Size: 1/4
NL95HL4 Nominal Size: 1/4
NL95HL5 Nominal Size: 3/8
NL95HL6 Nominal Size: 1/2
NL95HL8 Nominal Size: 3/4
NL95HLA Nominal Size: 1
NL95HLX4 Nominal Size: 1/4
NL95HLX5 Nominal Size: 3/8
NL95HLX6 Nominal Size: 1/2
NL95HLX8 Nominal Size: 3/4
NL95HLXA Nominal Size: 1
NL95HLXB Nominal Size: 11/4
NL95HLXC Nominal Size: 11/2
NL95HLXD Nominal Size: 2

Quick Overview

Fig no: T-585-70-66
The NIBCO® bronze ball valve features threaded end connections and provides bubble-tight shutoff at 600 PSI. The reinforced PTFE seat ring with stainless steel stem and ball exhibit high chemical resistance properties and is recommended for many high pressure applications. Threaded end connections provide easy installation.
The NIBCO® bronze ball valve ensures ease of operation with quarter-turn (90 degrees) open to close. The full port valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Type of Valve : Ball Valve
Valve End Connection Type : T -- Female NPT Thread (FIPT)
Features :
Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Maximum temperature rating 400°F
Full port
Stainless steel ball and stem
Blowout-proof stem
Standard lever handle, optional NIB-SEAL®
Threaded end connections
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-110

Additional Information

Manufacturer: Nibco
