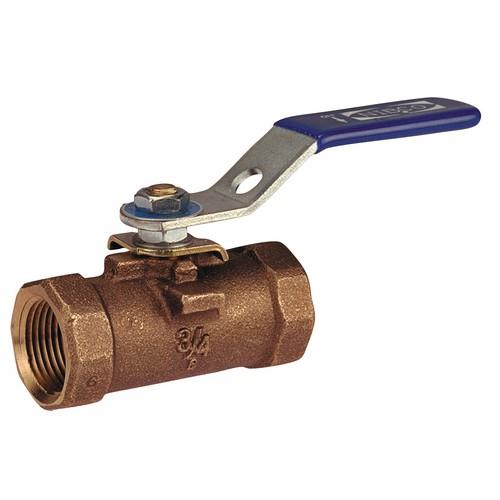

One-Piece Bronze Ball Valve - PTFE Seat, Bronze Trim

Quick Overview

• Fig no: T-560-BR-Y-20
• The NIBCO® reduced port bronze ball valve with PTFE seat provides bubble-tight shutoff at 600 PSI. The PTFE seat ring and brass ball exhibit high chemical resistance properties and is recommended for process piping. The one-piece valve is recommended for hot/cold water, HVAC, some chemical and utility service applications. The valve may be used for isolation and throttling (half open to full open only).
• The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The one-piece design eliminates leak paths and features NPT end connections for easy installation. Please refer to NIBCO technical data sheets, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
