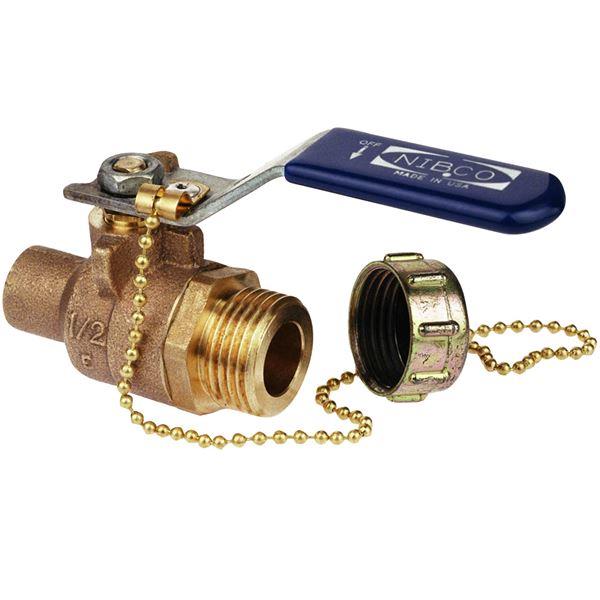

Two-Piece Bronze Ball Valve - Full Port, Solder End Connections

SKU / Product Info	Quantity
NJ83004 Nominal Size: 1/4
NJ83005 Nominal Size: 3/8
NJ83006 Nominal Size: 1/2
NJ83008 Nominal Size: 3/4
NJ8300A Nominal Size: 1
NJ83058 Nominal Size: 3/4
NJ830A8 Nominal Size: 3/4
NJ830E6 Nominal Size: 1/2
NJ830E8 Nominal Size: 3/4
NJ830EA Nominal Size: 1
NJ830F4 Nominal Size: 1/4
NJ830F5 Nominal Size: 3/8
NJ830F6 Nominal Size: 1/2
NJ830F8 Nominal Size: 3/4
NJ830FA Nominal Size: 1
NJ830L4 Nominal Size: 1/4
NJ830L5 Nominal Size: 3/8
NJ830L6 Nominal Size: 1/2
NJ830L8 Nominal Size: 3/4
NJ830LA Nominal Size: 1
NJ830Q8 Nominal Size: 3/4
NJ8310B Nominal Size: 11/4
NJ8310C Nominal Size: 11/2
NJ8310D Nominal Size: 2
NJ831EB Nominal Size: 11/4
NJ831EC Nominal Size: 11/2
NJ831ED Nominal Size: 2
NJ831FB Nominal Size: 11/4
NJ831FC Nominal Size: 11/2
NJ831FD Nominal Size: 2
NJ831LB Nominal Size: 11/4
NJ831LC Nominal Size: 11/2
NJ831LD Nominal Size: 2
NJ831PB Nominal Size: 11/4
NJ831PC Nominal Size: 11/2
NJ831PD Nominal Size: 2
NJ832P4 Nominal Size: 1/4
NJ832P5 Nominal Size: 3/8
NJ832P6 Nominal Size: 1/2
NJ832P8 Nominal Size: 3/4
NJ832PA Nominal Size: 1
NJ832QB Nominal Size: 11/4
NJ8330B Nominal Size: 11/4
NJ8330C Nominal Size: 11/2
NJ8330D Nominal Size: 2
NJ838P6 Nominal Size: 1/2
NJ838P8 Nominal Size: 3/4
NJ83I04 Nominal Size: 1/4
NJ83I05 Nominal Size: 3/8
NJ83I06 Nominal Size: 1/2
NJ83I08 Nominal Size: 3/4
NJ83I0A Nominal Size: 1
NJ83T08 Nominal Size: 3/4
NJ83T0A Nominal Size: 1
NJ83T34 Nominal Size: 1/4
NJ83T35 Nominal Size: 3/8
NJ83T36 Nominal Size: 1/2
NJ83T38 Nominal Size: 3/4
NJ83T3A Nominal Size: 1
NJ83T3B Nominal Size: 11/4
NJ83T3C Nominal Size: 11/2
NJ83T3D Nominal Size: 2
NJ83W04 Nominal Size: 1/4
NJ83W05 Nominal Size: 3/8
NJ83W06 Nominal Size: 1/2
NJ83W08 Nominal Size: 3/4
NJ83W0A Nominal Size: 1
NJ83W1B Nominal Size: 11/4
NJ83W1C Nominal Size: 11/2
NJ83W1D Nominal Size: 2
NJ86LX4 Nominal Size: 1/4
NJ86LX5 Nominal Size: 3/8
NJ86LX6 Nominal Size: 1/2
NJ86LX8 Nominal Size: 3/4
NJ86LXA Nominal Size: 1
NJ86LXB Nominal Size: 11/4
NJ86LXC Nominal Size: 11/2
NJ86LXD Nominal Size: 2

Quick Overview

Fig no: S-585-70
The NIBCO® two-piece ball valve features solder ends for quick and efficient installation. The full port bronze ball valve provides bubble-tight shutoff at 600 PSI. The valve's reinforced PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties, and is recommended for many high pressure applications.
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Type of Valve : Ball Valve
Valve End Connection Type : S -- Female Solder Cup
Features :
Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Maximum temperature rating 400°F
Chrome plated brass ball, silicon bronze stem
Blowout-proof stem
Standard lever handle, optional NIB-SEAL®
Solder end connections
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-110

Additional Information

Manufacturer: Nibco
