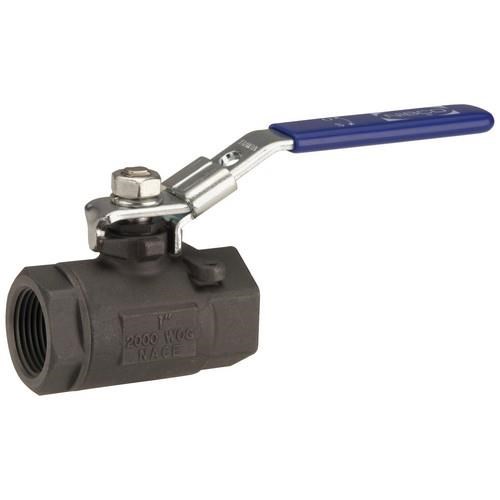

Two-Piece Carbon Steel Ball Valve - Conventional Port, Cast Mounting Pad

Quick Overview

• Fig no: TC-580-CS-R-25-LL
• The NIBCO® carbon steel ball valve provides bubble-tight shutoff at 2000 PSI. This valve features a lockable lever handle for security and a cast mounting pad for actuation purposes. It may be used for isolation and throttling (half open to full open only). The two-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications.
• The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and stainless steel ball exhibits high chemical resistance properties and is recommended for process piping. This valve features threaded ends for easy installation. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
