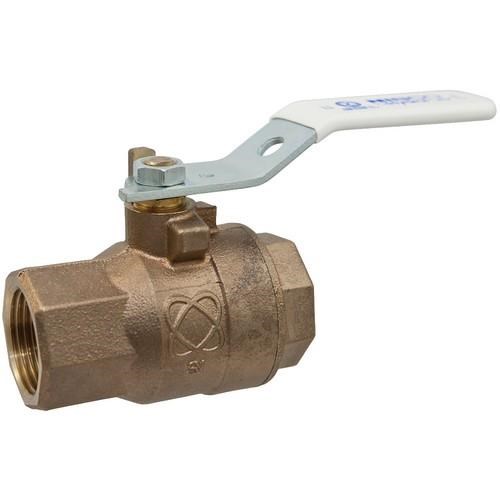

Two-Piece Bronze Ball Valve - Lead-Free, Full Port, Stainless Steel Trim, Threaded

SKU / Product Info	Quantity
NL952X4 Nominal Size: 1/4
NL952X5 Nominal Size: 3/8
NL952X6 Nominal Size: 1/2
NL952X8 Nominal Size: 3/4
NL952XA Nominal Size: 1
NL952XB Nominal Size: 11/4
NL952XC Nominal Size: 11/2
NL952XD Nominal Size: 2
NL952XE Nominal Size: 21/2
NL952XF Nominal Size: 3
NL95HMB Nominal Size: 11/4
NL95HMC Nominal Size: 11/2
NL95HMD Nominal Size: 2
NL95HN4 Nominal Size: 1/4
NL95HN5 Nominal Size: 3/8
NL95HN6 Nominal Size: 1/2
NL95HN8 Nominal Size: 3/4
NL95HNA Nominal Size: 1
NL95HX4 Nominal Size: 1/4
NL95HX5 Nominal Size: 3/8
NL95HX6 Nominal Size: 1/2
NL95HX8 Nominal Size: 3/4
NL95HXA Nominal Size: 1
NL95LF4 Nominal Size: 1/4
NL95LF5 Nominal Size: 3/8
NL95LF6 Nominal Size: 1/2
NL95LF8 Nominal Size: 3/4
NL95LFA Nominal Size: 1
NL95LFFB Nominal Size: 1/4
NL95LFFC Nominal Size: 11/2
NL95NX4 Nominal Size: 1/4
NL95NX5 Nominal Size: 3/8
NL95NX6 Nominal Size: 1/2
NL95NX8 Nominal Size: 3/4
NL95NXA Nominal Size: 1
NL95NXB Nominal Size: 11/4
NL95NXC Nominal Size: 11/2
NL95NXD Nominal Size: 2
NL95NXE Nominal Size: 21/2
NL95XHB Nominal Size: 11/4
NL95XHC Nominal Size: 11/2
NL95XHD Nominal Size: 2
NL95XHE Nominal Size: 21/2
NL95XHF Nominal Size: 3
NL961KB Nominal Size: 11/4
NL961KC Nominal Size: 11/2
NL961KD Nominal Size: 2
NL961KE Nominal Size: 21/2
NL961KF Nominal Size: 3
NL96HK4 Nominal Size: 1/4
NL96HK5 Nominal Size: 3/8
NL96HK6 Nominal Size: 1/2
NL96HK8 Nominal Size: 3/4
NL96HKA Nominal Size: 1
NL97LX4 Nominal Size: 1/4
NL97LX5 Nominal Size: 3/8
NL97LX6 Nominal Size: 1/2
NL97LX8 Nominal Size: 3/4
NL97LXA Nominal Size: 1
NL97LXB Nominal Size: 11/4
NL97LXC Nominal Size: 11/2
NL97LXD Nominal Size: 2
NLB952X4 Nominal Size: 1/4
NLB952X5 Nominal Size: 3/8
NLB952X6 Nominal Size: 1/2
NLB952X8 Nominal Size: 3/4
NLB952XA Nominal Size: 1
NLB952XB Nominal Size: 11/4
NLB952XC Nominal Size: 11/2
NLB95HMB Nominal Size: 11/4
NLB95HMC Nominal Size: 11/2
NLB95HN4 Nominal Size: 1/4
NLB95HN5 Nominal Size: 3/8
NLB95HN6 Nominal Size: 1/2
NLB95HN8 Nominal Size: 3/4
NLB95HNA Nominal Size: 1
NLB95HX4 Nominal Size: 1/4
NLB95HX5 Nominal Size: 3/8
NLB95HX6 Nominal Size: 1/2
NLB95HX8 Nominal Size: 3/4
NLB95HXA Nominal Size: 1
NLB95LF4 Nominal Size: 1/4
NLB95LF5 Nominal Size: 3/8
NLB95LF6 Nominal Size: 1/2
NLB95LF8 Nominal Size: 3/4
NLB95LFA Nominal Size: 1
NLB95LFFB Nominal Size: 1/4
NLB95LFFC Nominal Size: 11/2
NLB95NX4 Nominal Size: 1/4
NLB95NX5 Nominal Size: 3/8
NLB95NX6 Nominal Size: 1/2
NLB95NX8 Nominal Size: 3/4
NLB95NXA Nominal Size: 1
NLB95NXB Nominal Size: 11/4
NLB95NXC Nominal Size: 11/2
NLB95XHB Nominal Size: 11/4
NLB95XHC Nominal Size: 11/2
NLB961KB Nominal Size: 11/4
NLB961KC Nominal Size: 11/2
NLB96HK4 Nominal Size: 1/4
NLB96HK5 Nominal Size: 3/8
NLB96HK6 Nominal Size: 1/2
NLB96HK8 Nominal Size: 3/4
NLB96HKA Nominal Size: 1
NLB97LX4 Nominal Size: 1/4
NLB97LX5 Nominal Size: 3/8
NLB97LX6 Nominal Size: 1/2
NLB97LX8 Nominal Size: 3/4
NLB97LXA Nominal Size: 1
NLB97LXB Nominal Size: 11/4
NLB97LXC Nominal Size: 11/2

Quick Overview

Fig no: T-585-66-LF
The NIBCO® ball valve is made of lead-Free Silicon Performance Bronze® alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with stainless steel stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction.
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Interested in this item or want more information?

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Type of Valve : Ball Valve
Valve End Connection Type : T -- Female NPT Thread (FIPT)
Features :
Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Max temperature rating 300°F
Full port
Silicon Performance Bronze® body
Stainless steel ball and stem
Vented ball
Blowout-proof stem
Standard lever handle, optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever, Round and Wing
NIBCO® HydraPure® lead-Free markings on handle and body
Threaded end connections
Dezincification resistant
Lead-Free

Additional Information

Manufacturer: Nibco
