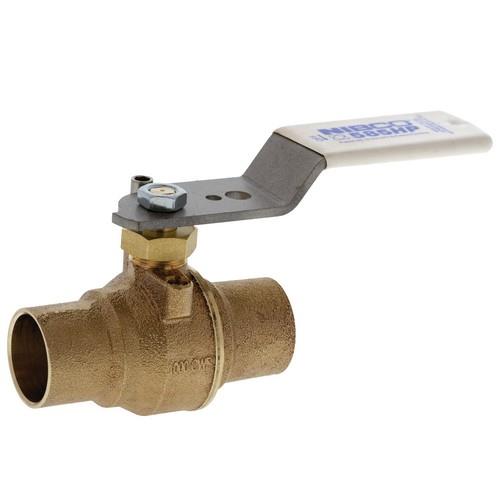

S-585HP-66-LF-EL SOLDER BV EXT LVR

HP832XE

Fig no: S-585HP-66-LF
The 585HP is on the cutting edge of manufacturing technology, ease of installation, and highest quality standards. The Classic Ball Valve has been completely rethought and redesigned to enhance the user experience and incorporate advances in assembly technology. NIBCO has created the most advanced commercial ball valve on the market today. The valve is laser-welded to create an incredibly strong joint between the body and body-end pieces, eliminating a potential leak path. The weld allows for an increased pressure rating of 1,000 psi, up from the standard 600 psi.
NIBCO engineers have redesigned the top works of the valve to make it easier to install and service. The stem is triple sealed with double O-rings and PTFE packing. The easily accessible, large pack nut can be tightened without removing the handle or using a special wrench. This also allows for the packing to be replaced and serviced. The handle is reversible without disconnecting the valve. 585HP ball valve features solder ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. When performance matters, choose the NIBCO® 585HP ball valves for the most advanced and versatile valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the industry leading NIBCO INC. 10-year 125% limited warranty.

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Type of Valve : Ball Valve
Valve End Connection Type : S -- Female Solder Cup
Features :
Valve Pressure Rating 1,000 psi/69 Bar (1/2" -1") & 800 psi/55 Bar (1 1/4" -2") Non-shock Cold Working Pressure
Maximum temperature rating 300°F
Full port
Laser Welded
Reversible Handle
Easily Adjustable Pack Nut
Triple Sealed Stem
Silicon Performance Bronze® Body
Stainless steel ball and stem
Blowout-proof Stem
Reinforced PTFE Seat Rings
Standard Lever Handle, Optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever

Manufacturer: Nibco
