Details
- Break Quantity: 1
- Optional Package/Box Quantity: 1
- Material: Zinc Plated Iron
- Torque: 21 ft. lbs.
- Hose ID: 1" (25 mm)
- Hose OD From: 1-44/64" (42.9 mm)
- Hose OD To: 1-60/64" (49.2 mm)

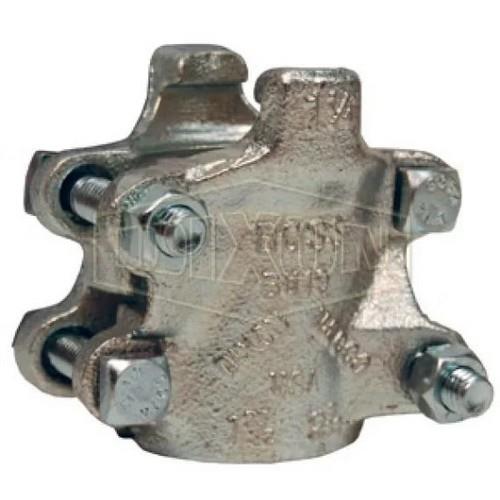

- Features: 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
- Specifications: Recommended for steam service up to 450°F (232°C).
- Use:
- The correct size Boss Clamp must be used.
- Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
- Always tighten bolts to their specified torque value.
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses.
- Boss Clamps are for single use only! Once removed they are to be discarded.
Additional Information
Manufacturer: Dixon Valve & Coupling Company
