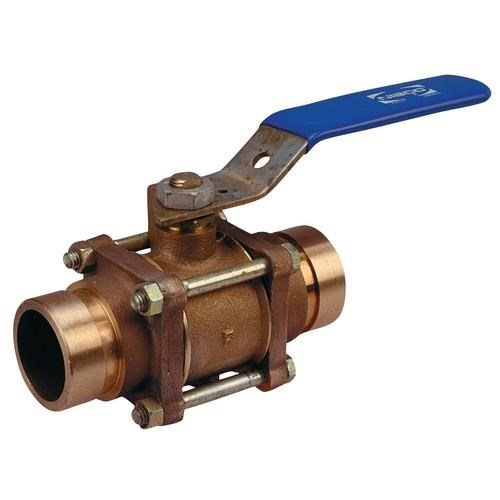

Three-Piece Bronze Ball Valve - Grooved End Connections, Stainless Steel Trim

Quick Overview

• Fig no: G-595-Y-66
• The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features IPS grooved ends for easy installation.
• The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The three-piece valve is repairable in-line. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
