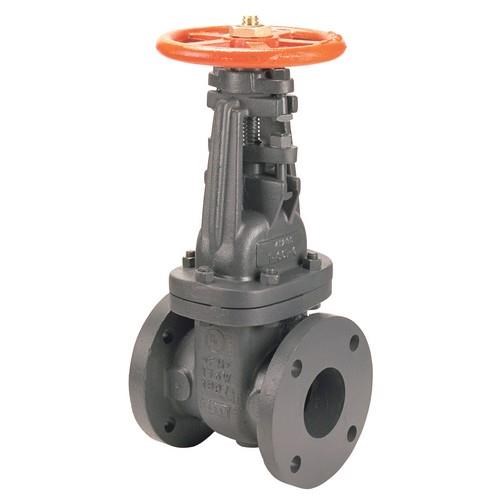

Gate Valve - Cast Iron, Fire Protection, Pre-Grooved Stem

Quick Overview

• Fig no: F-607-OTS
• The NIBCO® cast iron gate valve provides full flow with minimal pressure drop. The NIBCO® flanged cast iron gate valve is designed to be the main control valve in an automatic fire sprinkler system.
• The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting. It is listed by Underwriters Laboratories of the US and Canada (UL/ULC) and FM Approved. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO® pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.
