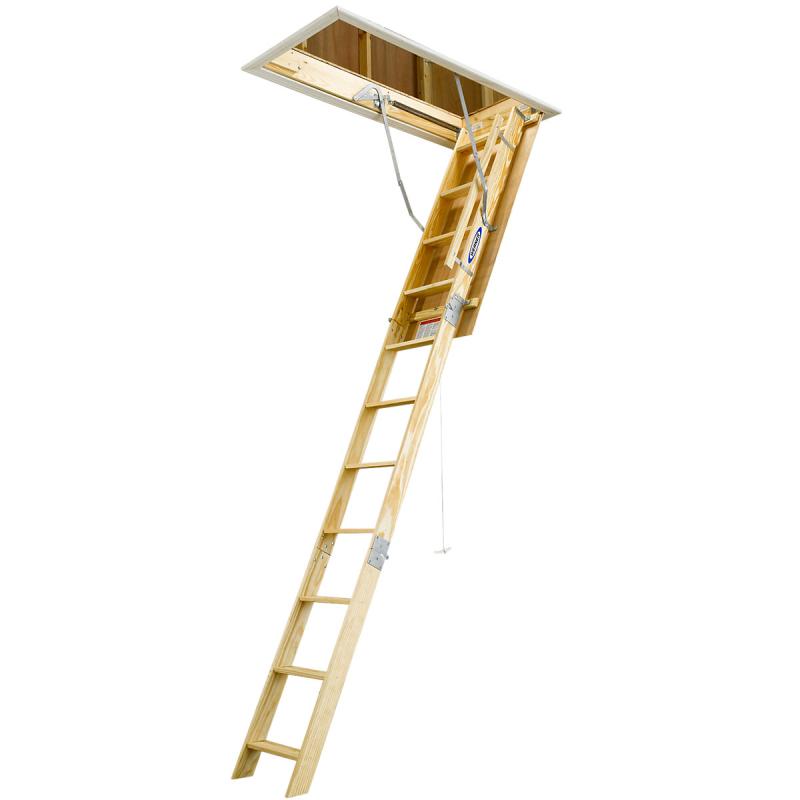

WU2210 22.5" W x 54" L x 8-10' Ceiling Wood Attic Ladder

WU2210

Werner Co.

Quick Overview


    Features:
    • Fits all ceiling heights from 8' to 10'
    • Counter-balance mechanism eliminates sag and springiness
    • Full wrap-around door hinge minimizes heat loss
    • Quality door - ready for staining/painting
    • Hinges butt metal to metal to maintain ladder rigidity
    • Pull string allows for easy operation
    • Easy to open and close
    • Fully assembled and ready to install
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Performance Overview
SizeLoad CapacityMaterial
8'-10'250 lbsWood

Specifications
  • Size: 8'-10'
  • Floor to Ceiling Height Range: 7'11" to 10'4"
  • Rough Opening Width x Length: 22-1/2" x 54"
  • Load Capacity: 250 lbs
  • Ladder Width: 14-1/4"
  • Landing Space Range: 4' 2" - 5' 3"
  • Swing Clearance: 6' 2"
  • Foot Material: Wood
  • Locking Device: Spring
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: Yes
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 8.2
  • Approx. Shipping Wt. Lbs.: 55

Dimensions
  • Rail Size: 3/4" x 3-1/2"
  • Step Length: 12-3/4"
  • Step Width: 3-1/2"
  • Grooved Steps-Actual Lumber Size: 3/4" x 3-1/2"

Additional Information

Manufacturer: Werner Co.
