Details
|
Product
|
Material
|
Shank Length
|
Hose ID/NPSC
|
No. of Clamps
Per Nipple
|
Package
Quantity
|
Package Weight
|
|
In.
|
mm
|
In.
|
mm
|
Lbs
|
Kg
|
|
E10669
|
Plated Steel
|
1.06
|
27
|
1/4
|
6
|
1
|
12 / Box
|
0.7
|
0.3
|
|
E12299
|
Plated Steel
|
1.37
|
34
|
1/2
|
12
|
1
|
12 / Box
|
1.7
|
0.8
|
|
E13499
|
Plated Steel
|
1.37
|
34
|
3/4
|
12
|
1
|
12 / Box
|
3
|
1.6
|
|

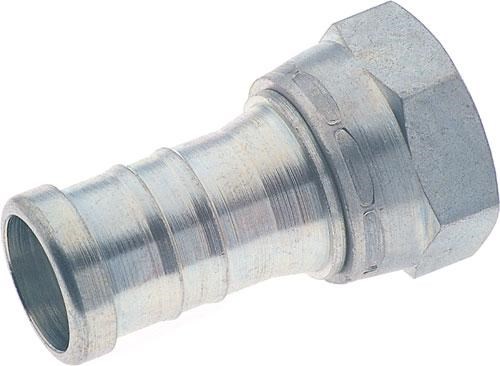

Nut end has conical seat to seal with
BAND-IT Male Hose Nipple.
|
Recommended Clamp Widths for BAND-IT Hose Nipples
| Hose ID | Band Clamp Width |
| Inches | (mm) | Inches | (mm) |
| 1/2 to 5/8 | 13 to 16 | 3/8 to 1/2 | 6.35 pr 12.70 |
| 3/4 to 1 1/2 | 19 to 38 | 1/2 to 3/4 | 12.70 to 19.05 |
| 2 to 6 | 51 to 152 | 3/4 | 19.05 |
For maximum holding power, BAND-IT recommends the ULTRA-LOK Clamping System for use with all hose fittings larger than 2" in diameter.
