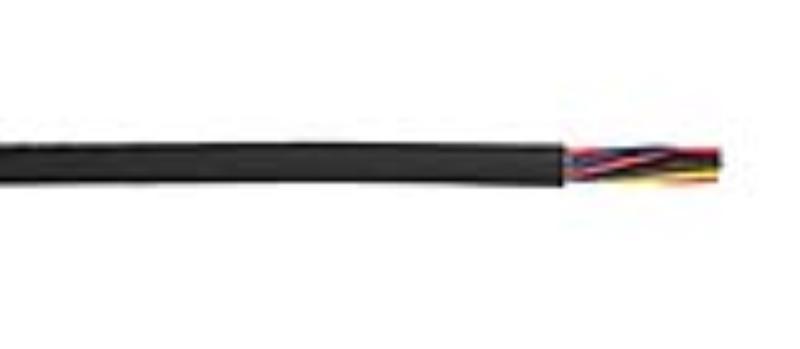

Quick Overview
Features :-
- Advanced small diameter construction for use in tight, restricted areas.
- Nylon armored insulation reduces friction, stress and conductor fatigue during continuous flexing.
- Seoprene jacketing protects against oil, gas ozone, chemical and abrasion.
- 90°C rating for high capacity.
- Meets specifications for indoor and outdoor applications.
- Reinforced core wrap provides high dielectric and mechanical strength.
Interested in this item or want more information?
Hours:
Phone: 800-877-3030
Email: rvoelp@tri-state-industrial.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters :- Electrical Properties :- | Conductor | 18 AWG Bare Copper |
| Stranding | 16/30 |
| Insulation Material | PVC/Nylon |
| Insulation Thickness | 0.021'' Nom. |
| Insulated Conductor Diameter | 0.088'' Nom. |
| Number of Conductors | 5 |
| Filler | Dry Jute |
| Lay Length | 3.00'' Nom. |
| Separator/Wrap | Clear Mylar Wrap |
| Jacket Material | TPE |
| Jacket Thickness | 0.047'' Nom. |
| Overall Cable Diameter | 0.335'' Nom. |
| Approximate Cable Weight | 64.1 Lbs/1M' Nom. |
| Flame Rating | UL 1581 Vertical Tray Flame Test |
| Temperature Rating | -40OC to 90OC |
| Operating Voltage | 600 V RMS Max. |
| DC Resistance per Conductor @ 20OC | 6.49 Ohms/1M' |
Additional Information
Manufacturer: Coleman Cable - CCI
