SOLID W/GROUND UF-B

Coleman Cable - CCI

SKU / Product InfoQuantity
55560
14/2
55562
12/2
55564
10/2
55565
8/2
55575
6/2

Quick Overview

    Features & Applications:-

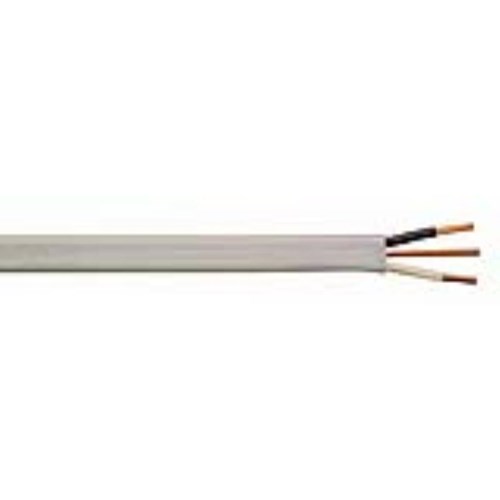

    • Two bare copper insulated conductors and one bare ground laid parallel with an overall jacket
    • Exposed and concealed wiring in normally dry locations as specified in the NEC
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:-

Electrical Properties:-

Conductor 14 AWG Bare Copper
Ground 14 AWG Bare Copper
Stranding Solid
Insulation Material PVC/Nylon
InsulationThickness 0.021'' Nom.
Insulated Conductor Diameter 0.106'' Nom.
Number of Conductors 2
Number of Ground 1
Jacket Material PVC
Jacket Thickness 0.048'' Nom.
Overall Dimensions 0.210" x 0.400" Nom.
Temperature Rating -20°C to 60°C
Operating Voltage 600 V RMS Max.
DC Resistance per Conductor @ 20°C 2.54 Ohms/1M' Nom.

Additional Information

Manufacturer: Coleman Cable - CCI
