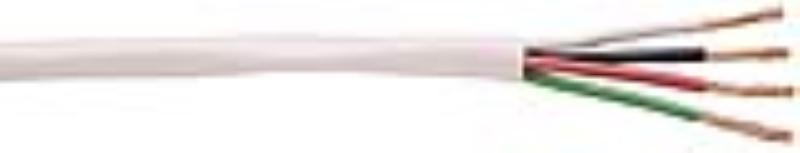

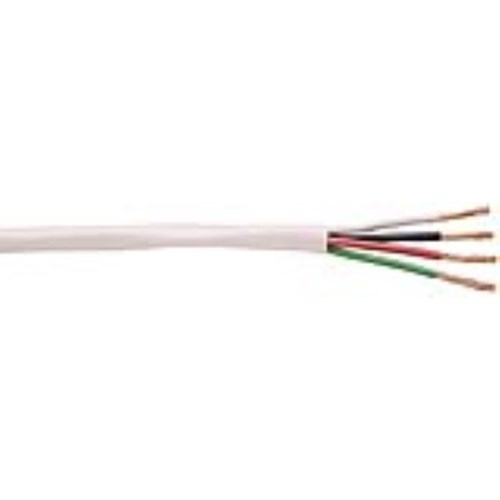

22/10 STR BC CMP/CL3P

Coleman Cable - CCI

SKU / Product InfoQuantity
72310
22/10

Quick Overview

    Features & Applications :-
    • Low Smoke PVC jacket
    • Ripcord and Sequential Footage Marking
    • Temperature Rating of 75°C
    • Power limited circuit and communication cable for use in plenum applications
    • Remote Control, Signaling, Security Systems, Communications, Intercom/P.A. Systems, Sound/Audio, and Nurse Call
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties :

Conductor 22 AWG Bare Copper
Stranding 7/30
Insulation Material PVC
Insulation Thickness 0.006'' Nom
Insulated Conductor Dimensions 0.049'' Nom.
Number of Conductors 10
Lay Length(Pairs) 5.00'' Nom.
Jacket Material PVC
Jacket Thickness 0.017'' Nom.
Overall Cable Diameter 0.231'' Nom
Approximate Cable Weight 48.5 Lbs/1M' Nom.
Flame Rating NFPA 262 Steiner Tunnel Smoke and Flame Test
Temperature Rating -20°C to 75°C
Rated Voltage 300 V Max per NEC Article 800
Capacitance Between Conductors @ 1 KHZ 37 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz ----
DC Resistance per Conductor @ 20°C 10.08 Ohms/1M' Nom.

Additional Information

Manufacturer: Coleman Cable - CCI
