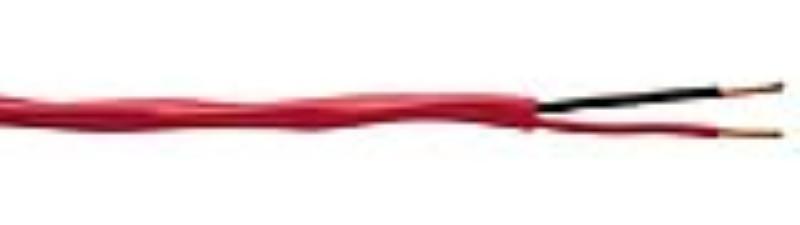

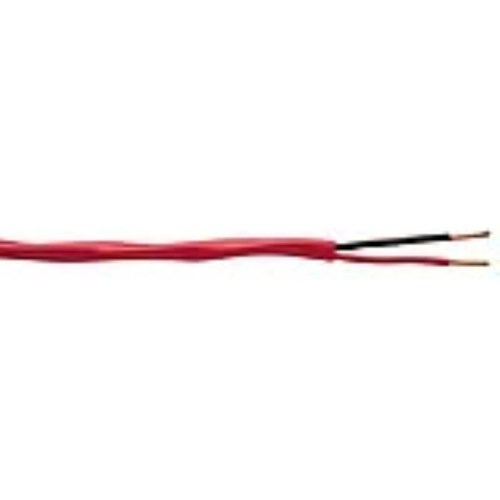

Quick Overview
Features & Applications:-
- PVC with Sun Resistance jacket
- Sequential Footage Marketing
- Pressure-Extruded Jacket is more staple resistant than a tubed jacket.
- Power limited circuit and communication cable for non-riser applications.
- Remote Control, Signaling, Security Systems, Communications, Single Line Telephone, Intercom/P.A. Systems
Interested in this item or want more information?
Hours:
Phone: 800-877-3030
Email: rvoelp@tri-state-industrial.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters :-
Electrical Properties:-
| Conductor | 12 AWG Bare Copper |
| Stranding | Solid |
| Insulation Material | PVC |
| Insulation Thickness | 0.010'' Nom. |
| Insulated Conductor Diameter | 0.101'' Nom. |
| Number of Conductors | 2 |
| Lay Length | 5.00'' Nom |
| Jacket Material | PVC |
| Jacket Thickness | 0.019'' Nom. |
| Overall Cable Diameter | 0.240'' Nom |
| Approximate Cable Weight | 52.7 Lbs/1M' Nom |
| Flame Rating | UL 1666 Riser Flame Test |
| Temperature Rating | -20°C to 60°C |
| Operating Voltage | 300 V RMS Max. |
| Capacitance Between Conductors @ 1 KHz | 29 pF/ft Nom. |
| Capacitance Between Conductors to Shield @ 1 KHz | ----- |
| DC Resistance per Conductor @ 20°C | 1.59 Ohms/1M' Nom. |
Additional Information
Manufacturer: Coleman Cable - CCI
