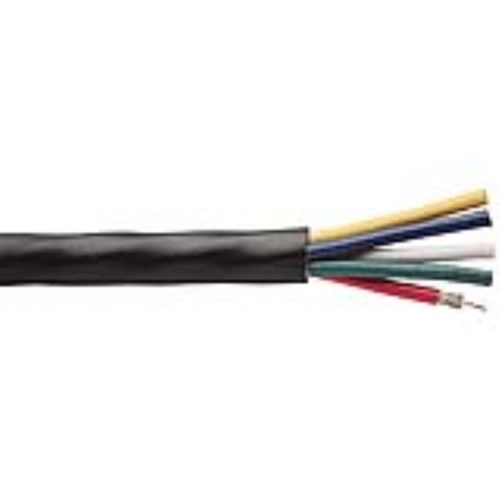

(6)Rg59 + (2)Cat 5E

99426

Coleman Cable - CCI

Quick Overview

    Features & Application:-
    • Each precision coax is constructed with 100% foil and 95% tinned copper (TC) braid shields
    • Sweep tested to 3.0Gz
    • Transfer RGB (Red, Green, Blue) signal from video sources to the displays.
    • The 5-coax version can be used with projectors that require horizontal and vertical sync in addition to the RGB signal, or for a combination of digital & analog audio
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:-

Electrical Properties:-

Part 1
Conductor 18 AWG (1/.040) Solid Copper Clad Steel 0.040
Dielectric Foam Polyethylene 0.180
Shielding 1 & 2 100% Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid 0.216
Shielding 3 & 4 100% Aluminum/Polyester/Aluminum Tape plus 60% Aluminum Braid 0.249
Part 2
Conductor 24 AWG (1/.020) Solid Bare Copper 0.020
Dielectric Polyethylene 0.038
Assembly "Two Insulated conductors are twisted into pairs and four pairs are cabled into a Core core."
Final
Jacket "Part 1 and Part 2 are jacketed in a two legged construction with a web between each leg" 0.290 x 0.575
VALUE*
Impedance (ohms)   75
Capacitance pf/ft   17
Velocity of Propagation (%)   81
Attenuation (Max db/100 ft) 10 MHz 1.85
50 MHz 1.0
100 MHz 1.3
200 MHz 2.05
400 MHz 3.05
700 MHz 5.95
1000 MHz 7.55
1200 MHz 8.9
1450 MHz 10.1
1500 MHz 10.3
2000 MHz 11.3
2500 MHz 12.2
3000 MHz 13.48

Additional Information

Manufacturer: Coleman Cable - CCI
