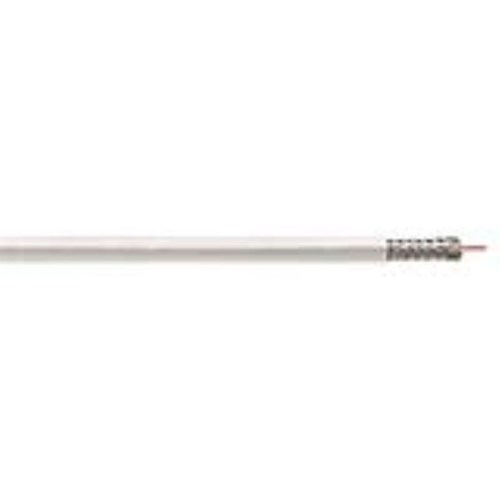

Coleman Cables Rg11 14Ccs 60 Al Plenum 3.0Ghz

821013

Features & Application:-

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Construction Parameters

Electrical Properties:-


		Wall (in)*	OD (in)*
Conductor	14 AWG (1/.064) Solid Copper Clad Steel	-	0.064
Dielectric	Foam FEP color natural	0.108	0.280
Shielding 1&2	Aluminum/Polyester/Aluminum Foil with 60% Aluminum Braid	-	0.312
Jacket	Polyvinylidene Fluoride (Kynarâ)	0.0170	0.346

		VALUE*
Conductor Resistance (ohms/kft)	-	11.1
Impedance(ohms)	-	75
Capacitance (pF/ft)	-	16.5
Velocity of Propagation (%)	-	82
Attenuation** (db/100 ft)	10 MHz	0.5
	50 MHz	1.1
	100 MHz	1.4
	200 MHz	2.1
	400 MHz	3.3
	700 MHz	5.4
	1000 MHz	5.9
	1450 MHz	7.2
	1800 MHz	7.9
	2200 MHz	9.5

Manufacturer: Coleman Cable - CCI
