Features & Application :-

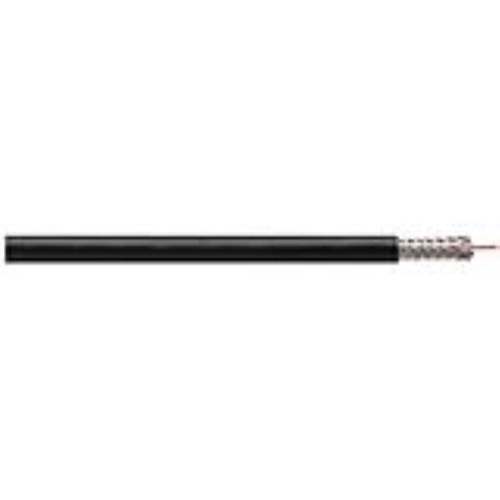

- RG 174 Type
- PE Dielectric
- PVC Jacket
Interested in this item or want more information?
Hours:
Phone: 800-877-3030
Email: rvoelp@tri-state-industrial.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
Electrical Properties
|
| | Wall (in)* | OD (in)* |
| Conductors | 26 AWG (7/.0063) Stranded Copper Clad Steel | - | 0.019 |
| Dielectric | Solid Polyethylene color natural | 0.021 | 0.060 |
| Shielding | 88% Tinned Copper Braid | - | 0.078 |
| Jacket | PVC | 0.011 | 0.100 |
|
| Impedance (ohms) | - | 50 |
| Capacitance (pF/ft) | - | 30.8 |
| Velocity of Propagation (%) | - | 66 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 6.6 |
| 100 MHz | 8.8 |
| 200 MHz | 11.9 |
| 400 MHz | 17.5 |
| 700 MHz | 28.2 |
| 1000 MHz | 30.2 |
Additional Information
Manufacturer: Coleman Cable - CCI
