Features & Applications:-

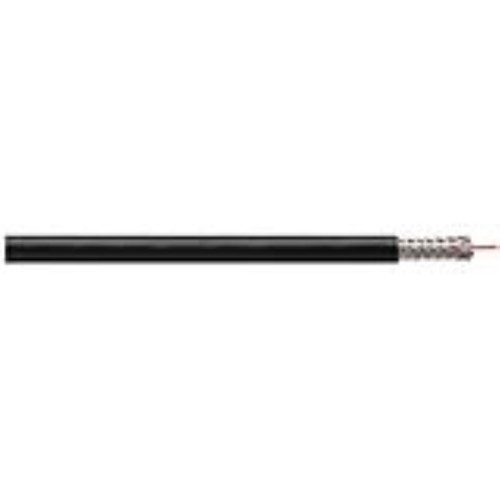

RG 214 Type
PE Dielectric
PVC Jacket
Interested in this item or want more information?
Hours:
Phone: 800-877-3030
Email: rvoelp@tri-state-industrial.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
Electrical Properties
|
| | Wall (in)* | OD (in)* |
| Conductors | 12.7 AWG (7/.030) Stranded Silver Coated Copper | - | 0.089 |
| Dielectric | Solid Polyethylene color natural | 0.098 | 0.285 |
| 1st Shielding: | 96% Silver Coated Copper Braid | - | 0.313 |
| 1st Shielding: | 98% Silver Coated Copper Braid | - | 0.341 |
| Jacket | PVC | 0.042 | 0.425 |
| VALUE* |
| Conductor Resistance (ohms/mft) | - | 0.17 |
| Impedance (ohms) | - | 50 |
| Capacitance (Max. pF/ft) | - | 30.8 |
| Velocity of Propagation (%) | - | 66 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 1.6 |
| 100 MHz | 2.2 |
| 200 MHz | 3.2 |
| 500 MHz | 4.7 |
| 900 MHz | 8.8 |
| 1000 MHz | 8.9 |
| 4000 MHz | 21.5 |
Additional Information
Manufacturer: Coleman Cable - CCI
