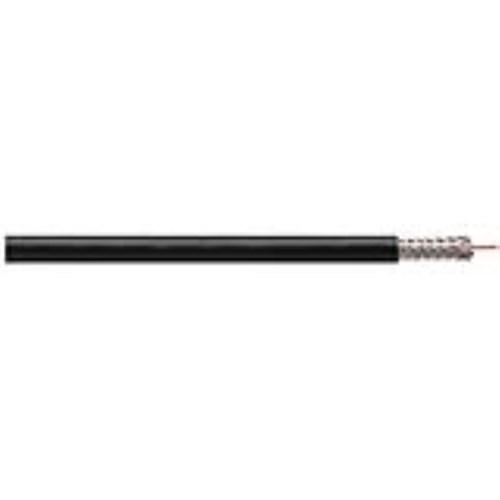

Coleman Cables Rg6 18Ccs 60/40 Al Quad Siamese

992151

Coleman Cable - CCI

Quick Overview

    Features & Applications:-
    • RG6 Type
    • Dual or Quad Shield
    • PE Dielectric
    • PVC Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?

Hours:

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 2 x 18 AWG (1/.040) Copper Clad Steel - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.180
Shielding 1 & 2 100% Bonded Polyester/Aluminum Tape plus 40% Aluminum Braid - 0.216
Shielding 3 & 4 100% Polyester/Aluminum Tape plus 60% Aluminum Braid - 0.249
Jacket PVC over 2 coax cores with web attachment 0.030 "0.300 x 0.620 "
VALUE*
Conductor Resistance(ohms/Kft) - 32
Braid Resistance(ohms/Kft) - 5
Impedance(ohms) - 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 81
Attenuation** (db/100 ft) 10 MHz 0.8
50 MHz 1.0
100 MHz 1.3
400 MHz 3.1
700 MHz 6.0
1000 MHz 6.3
1500 MHz 9.0
2000 MHz 9.5
3000 MHz 13.5

Additional Information

Manufacturer: Coleman Cable - CCI
