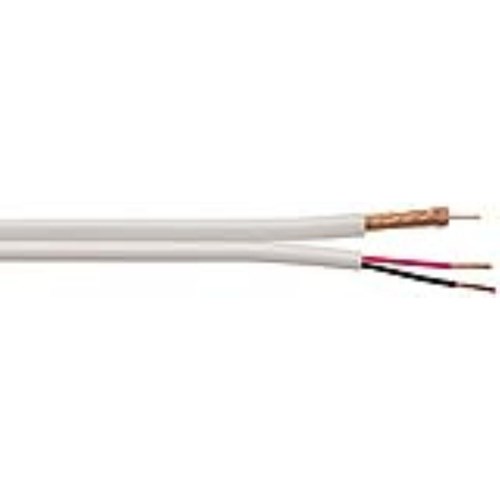

Features & Application:-
- Bare Copper Center Conductor
- 95% Bare Copper Braid
- FEP Dielectric
- PVC Low Smoke Plenum Jacket
- CCTV
Interested in this item or want more information?
Hours:
Phone: 800-877-3030
Email: rvoelp@tri-state-industrial.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
Electrical Properties:-
|
| OD (in)* |
| Part 1
|
| Conductor | 20 AWG (1/.032) Solid Bare Copper | 0.032 |
| Dielectric | Foam FEP | 0.140 |
| Shielding | 95% Copper Braid | 0.162 |
| Jacket | PVC | 0.194 |
| Part 2 |
|
| Conductor | 18 AWG (7/26) Stranded Bare Copper | 0.045 |
| Dielectric | Low Smoke PVC | 0.069 |
| Color Code | Black & Red | 0.138 |
| Final |
|
| Jacket | Low Smoke PVC extruded over Part 1 and Part 2 with web attached | Appx.0.226x0.364 |
| VALUE* |
| Impedance (ohms) | - | 75 |
| Capacitance pf/ft | - | 17.8 |
| Velocity of Propagation (%) | - | 82 |
| Attenuation (Max db/100 ft) | 50 MHz | 2.0 |
| 100 MHz | 2.7 |
| 200 MHz | 3.7 |
| 400 MHz | 6.3 |
| 1000 MHz | 10.1 |
Additional Information
Manufacturer: Coleman Cable - CCI
