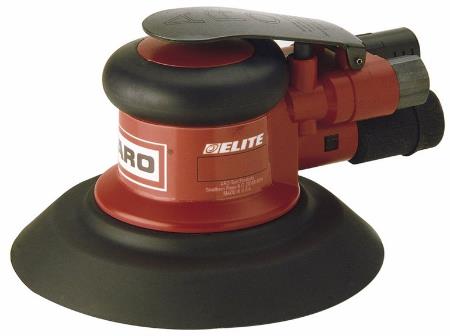

0.2 hp & 0.3 hp Cyclone Plain Non-Vacuum ROS

This series of orbital sanders features high efficiency air motors with reduced vibration, and quiet operation in a compact package.

Hours: 9:00AM -5:00 PM Mon-Fri

Phone: 800-877-3030

Email: rvoelp@tri-state-industrial.com

Can't find what you want? Give us a call and we can help you find it.

Model	R025B-PSV-1	R026B-PSV-1	R035A-PSV	R036A-PSV	R025B-PSV-2	R026B-PSV-2	R035A-PSV-L	R036A-PSV-L
Rated Power hp (kW)	0.2 (0.15)	0.2 (0.15)	0.3 (0.22)	0.3 (0.22)	0.2 (0.15)	0.2 (0.15)	0.3 (0.22)	0.3 (0.22)
Max Free Speed (rpm)	12000	12000	10000	10000	12000	12000	10000	10000
Pad Diameter in. (mm)	5" (125)	6" (150)	5" (125)	6" (150)	5" (125)	6" (150)	5" (125)	6" (150)
Orbit Diameter in. (mm)	3/16" (5)	3/16" (5)	3/16" (5)	3/16"	3/32" (2.5)	3/32" (2.5)	3/16"	3/16"
Pad Face	Vinyl	Vinyl	Vinyl	Vinyl	Vinyl	Vinyl	Vinyl	Vinyl
Shroud Style	Short	Short	Short	Short	Short	Short	Short	Short
Housing	Composite	Composite	Aluminum	Aluminum	Composite	Composite	Aluminum	Aluminum
Weight lbs. (kg)	1.83 (0.83)	1.92 (0.87)	2.2 (1.0)	2.2 (1.0)	1.83 (0.83)	1.92 (0.87)	2.6 (1.2)	2.6 (1.2)
Length in. (mm)	7.0" (178)	7.48" (190)	7.0" (178)	7.48" (190)	7.0" (178)	7.48" (190)	9.9" (252)	9.9" (252)
Sound Pressure/Power dBA	81.6 / N/A	81.6 / N/A	80 / N/A	80.0 / N/A	81.6 / N/A	81.6 / N/A	80.0 / N/A	80.0 / N/A
Vibration m/s2	3.5, uncertainty: 1.5	7.0, uncertainty: 2.2	3.7, uncertainty: 0.9	4.3, uncertainty: 1.4	3.7, uncertainty: 1.5	7.0, uncertainty: 2.2	3.7, uncertainty: 0.9	4.3, uncertainty: 1.4
Air Inlet NPTF in.	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"
Min Hose Size in. (mm)	5/16" (8)	5/16" (8)	5/16" (8)	5/16 (8)	5/16" (8)	5/16" (8)	5/16" (8)	5/16" (8)
Air Consumption @ Free Speed cfm (L/min)	15.8 (447)	15.8 (447)	18.5 (524)	18.5 (524)	15.8 (447)	15.8 (447)	18.5 (524)	18.5 (524)

Manufacturer: Ingersoll Rand
