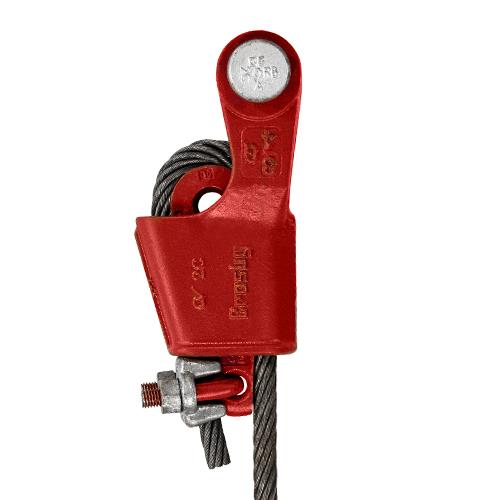

CROSBY 1035045 1^ COMPLETE WEDGE SOCKET S421T

Quick Overview

• Eliminates the potential breaking off of the tail due to fatigue…tail is secured by base of clip and the wedge, left unharmed and available for reuse
• Eliminates the need for an extra piece of wire rope
• Dead end of wire rope is secured to wedge, which eliminates loss or "punch out" of the wedge
• Basket is cast steel and magnetic particle inspected
• Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets
• 80% efficiency rating based on catalog strength of XXIP wire rope
• QUIC-CHECK markings are incorporated…the wire rope should pass thru the "Go" hole and should not pass thru the "No Go" hole on the wedge
• Satisfies ASME B30.26 requirements
